TRANSITION BIKES

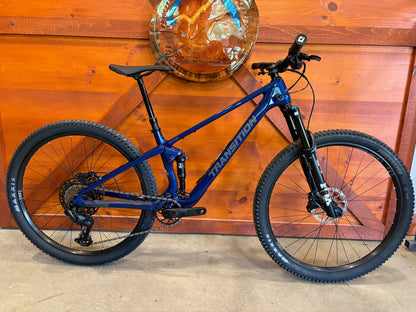

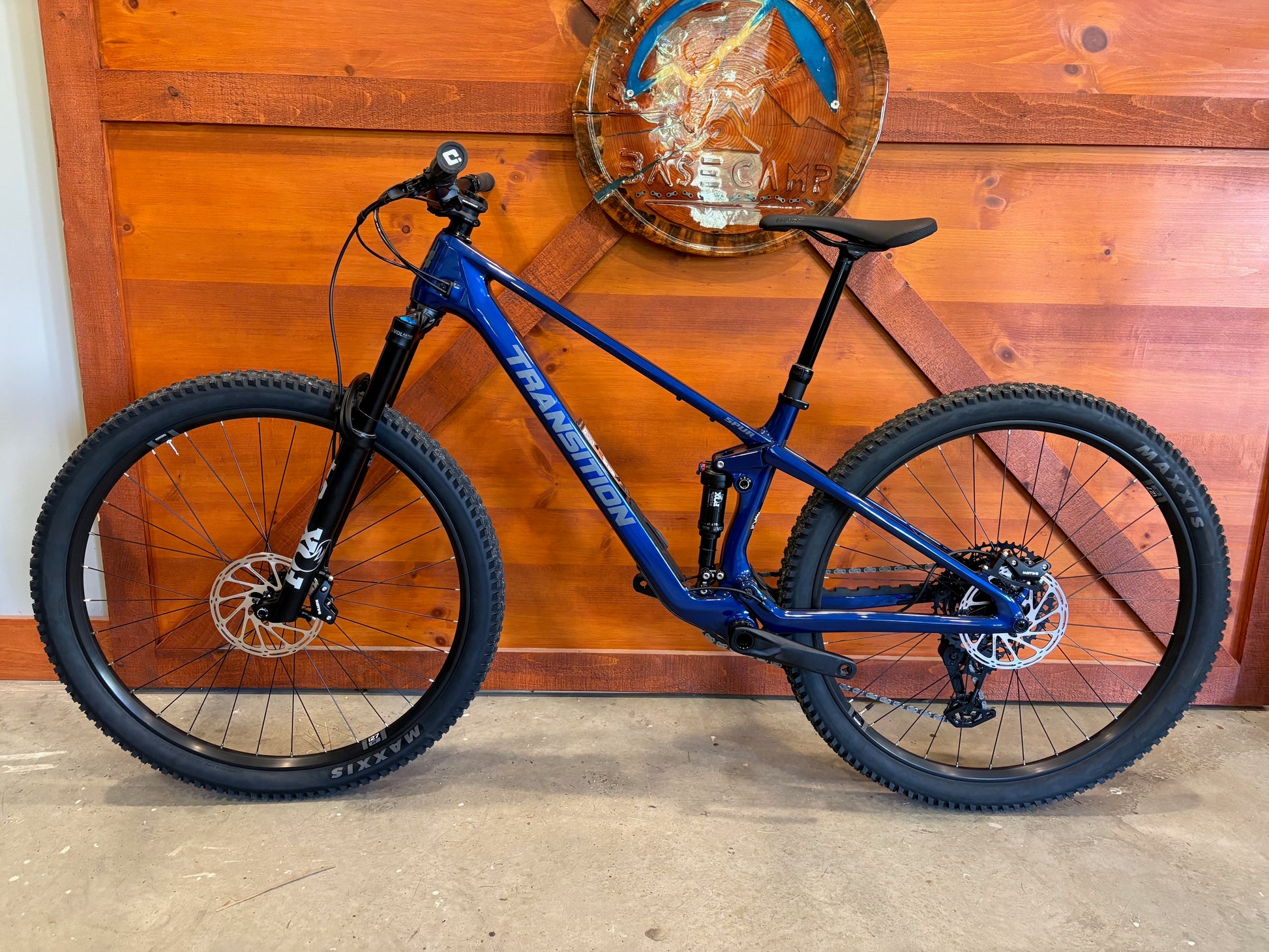

Transition Spur Eagle 70

Transition Spur Eagle 70

$5,499.00 USD
$5,499.00 USD
Sale Sold out
Shipping calculated at checkout.
Title
THE SINGLETRACK ENTHUSIAST
The Spur is our cross-country bike that refuses to be confined by labels. Now featuring 120mm rear and 130mm front travel paired with our famously progressive geometry, it blurs the lines of traditional XC. It's fast enough to race, tough enough for downcountry, and versatile enough to pull trail duty after hours. The Spur's broad range doesn't compromise performance in the category, it delivers across the board, making it the perfect ride for true singletrack enthusiasts.
Product

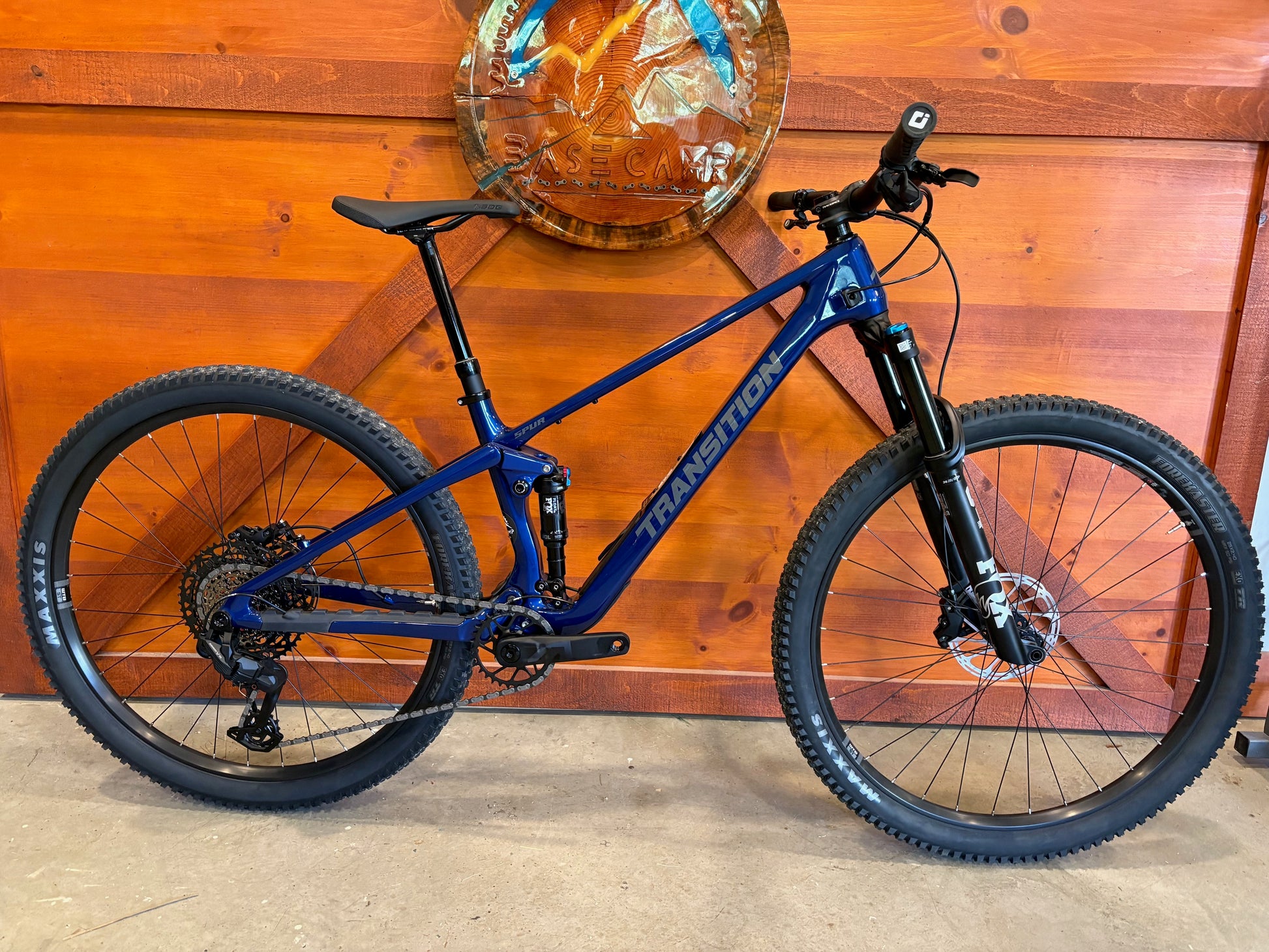

Transition Spur Carbon Eagle 70 Bike
Model Year
2026
Intended Use
Cross Country
Trail
Rider
Unisex
Sizes and Geometry
SM (High, Low)

MD (High, Low)

LG (High, Low)

XL (High, Low)

View Full Geometry
Wheel Size
29"
Frame Material
Carbon Fiber

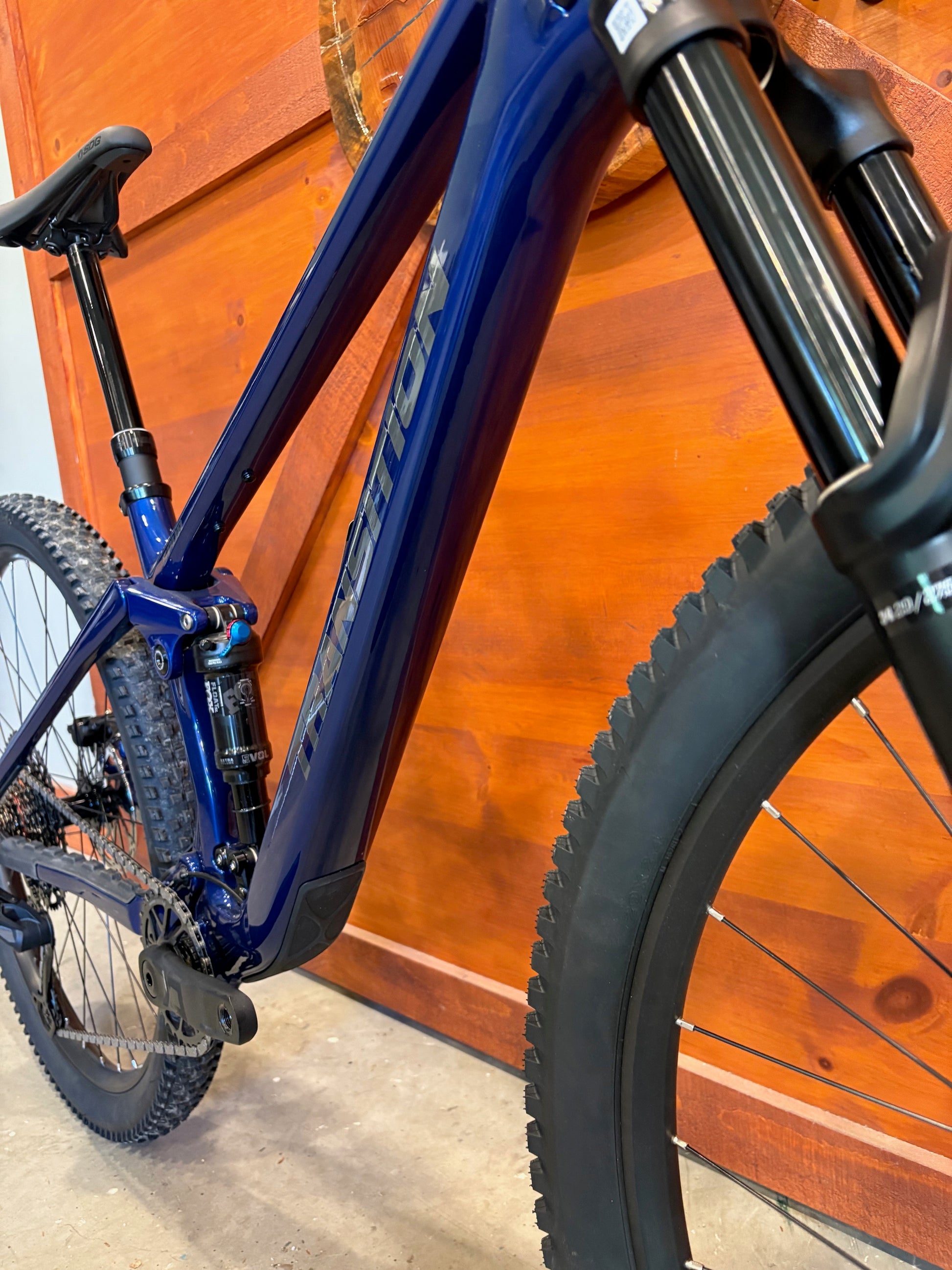

Frame Material Details
Carbon fiber front and rear triangles; molded chainstay, seatstay, and lower down tube protection
Rear Travel
120mm

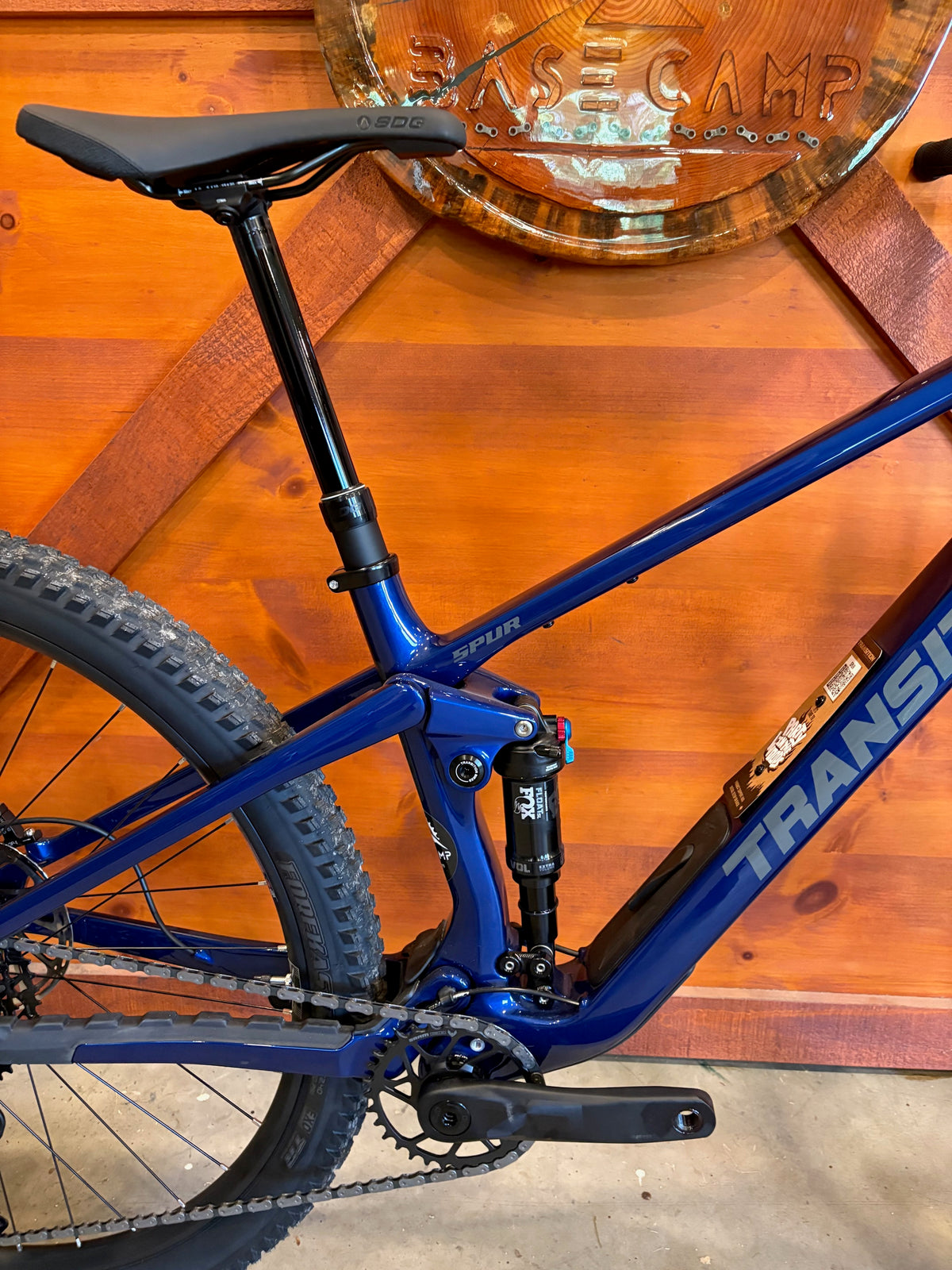

Rear Shock
FOX FLOAT SL Performance, 190mm length x 45mm stroke

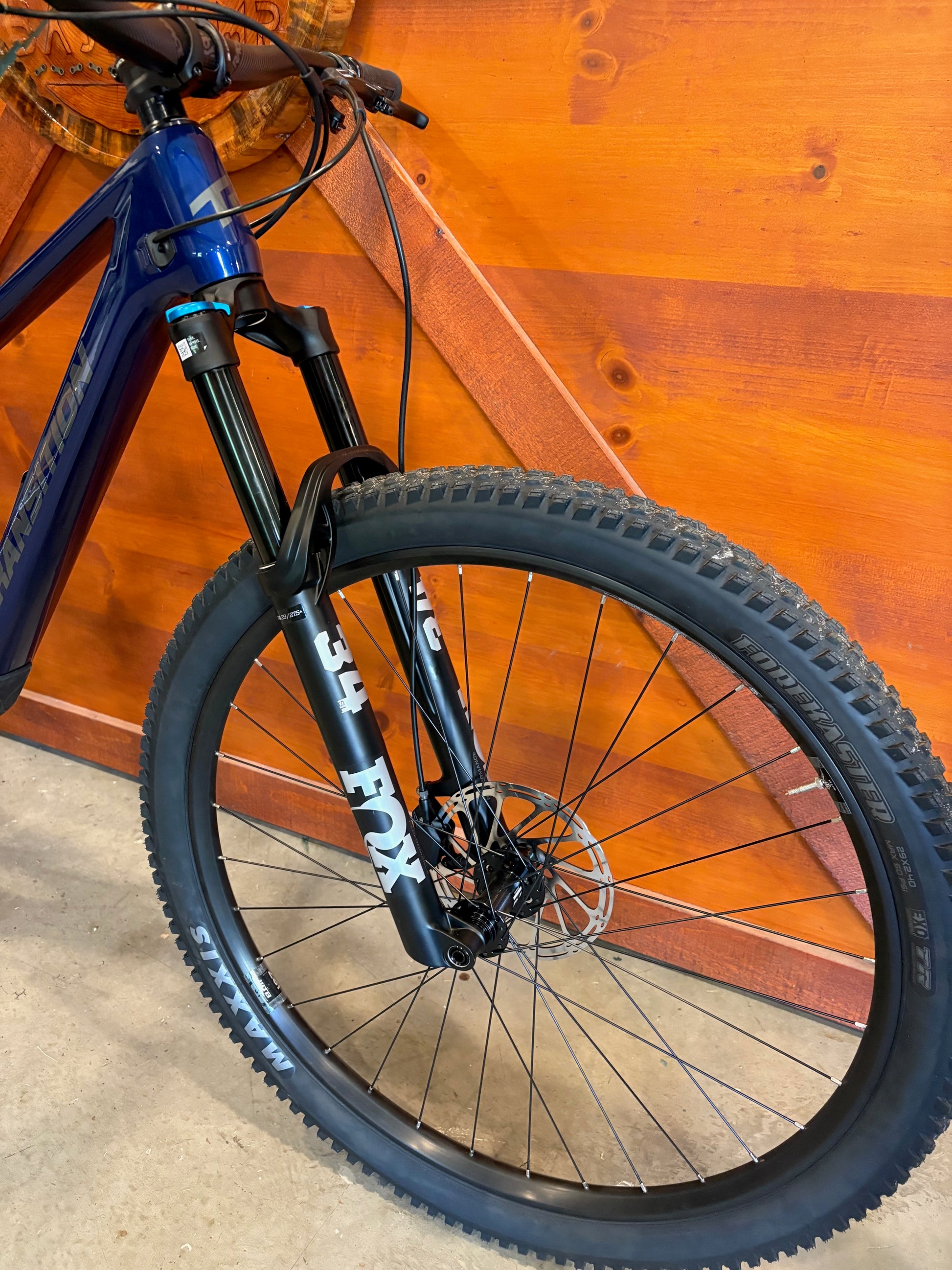

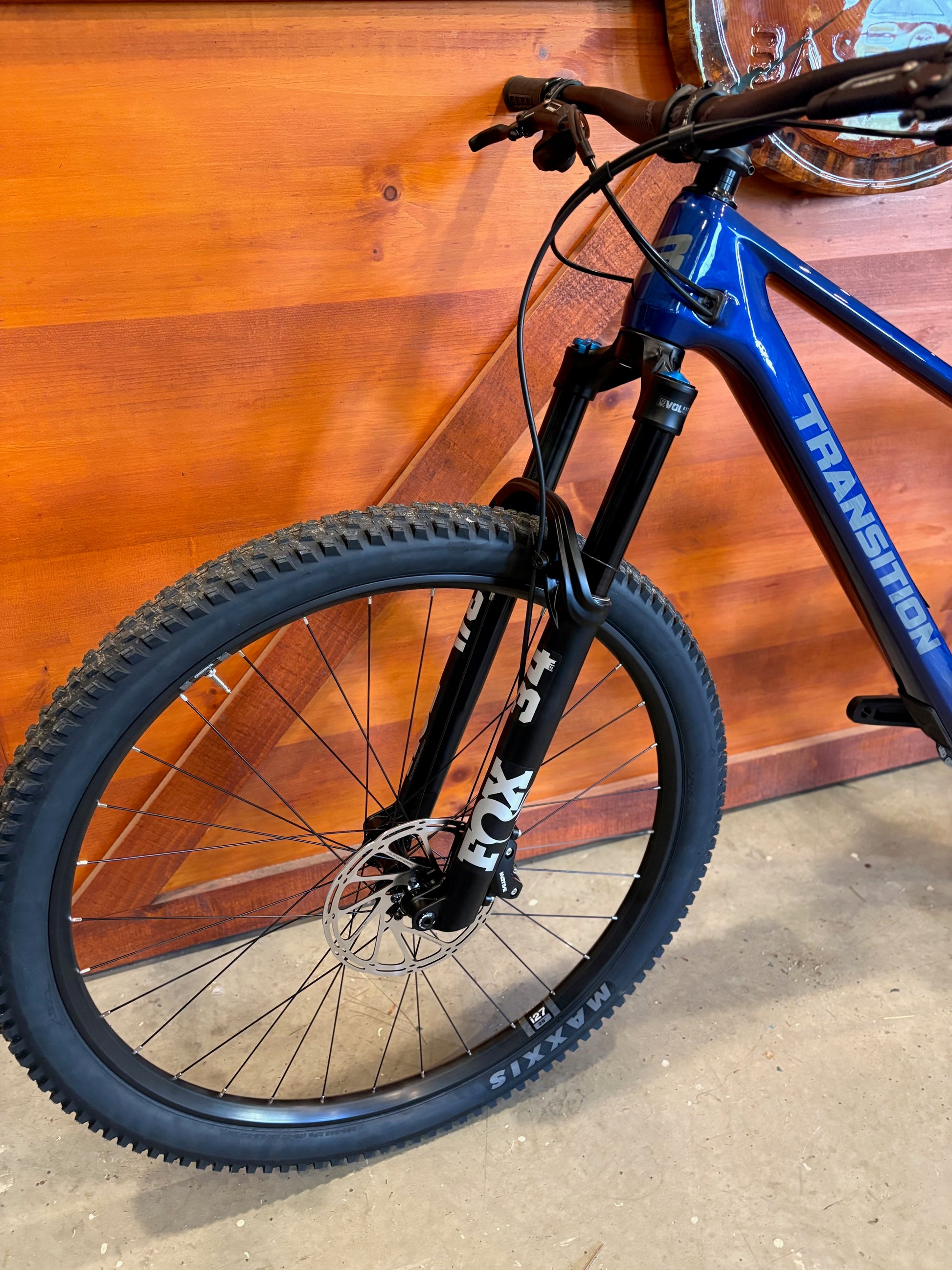

Fork
FOX FLOAT 34 SL Performance, GRIP damper
Fork Travel
130mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
FSA No.42/48/ACB, IS42 upper, IS52 lower

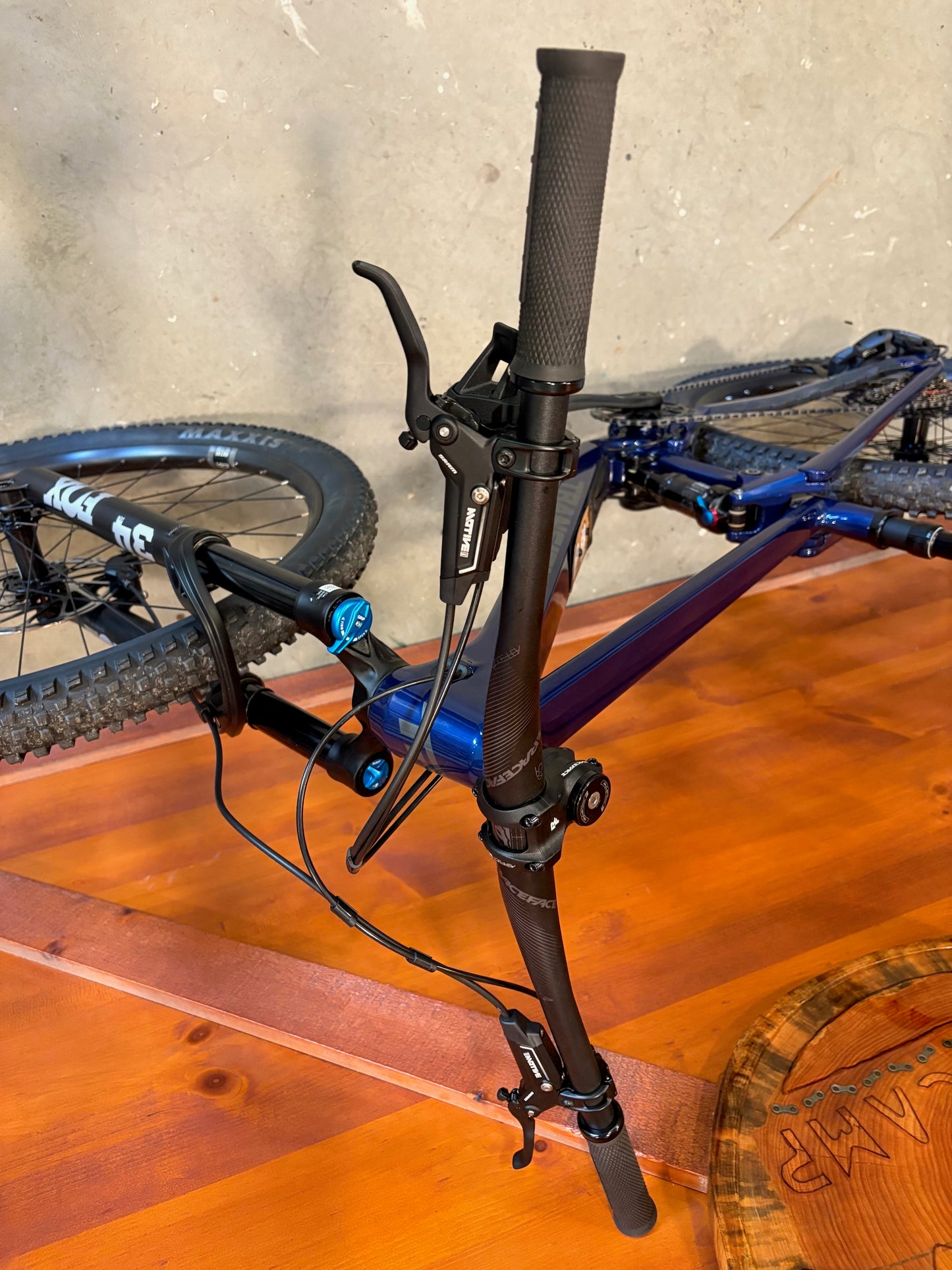

Handlebar
Race Face Aeffect R, 780mm width, 20mm rise
Stem
Race Face Aeffect R, 40mm length
Grips
ODI Elite Flow, lock-on
Brakes
SRAM Motive Bronze, 4-piston
Rotors: SRAM CenterLine, 180mm
Brake Levers
SRAM Motive Bronze Stealth, tool-free reach adjust
Drivetrain
1x
Shifters
SRAM Eagle 70 Transmission, 12-speed, MMX mounting bracket
Front Derailleur
None

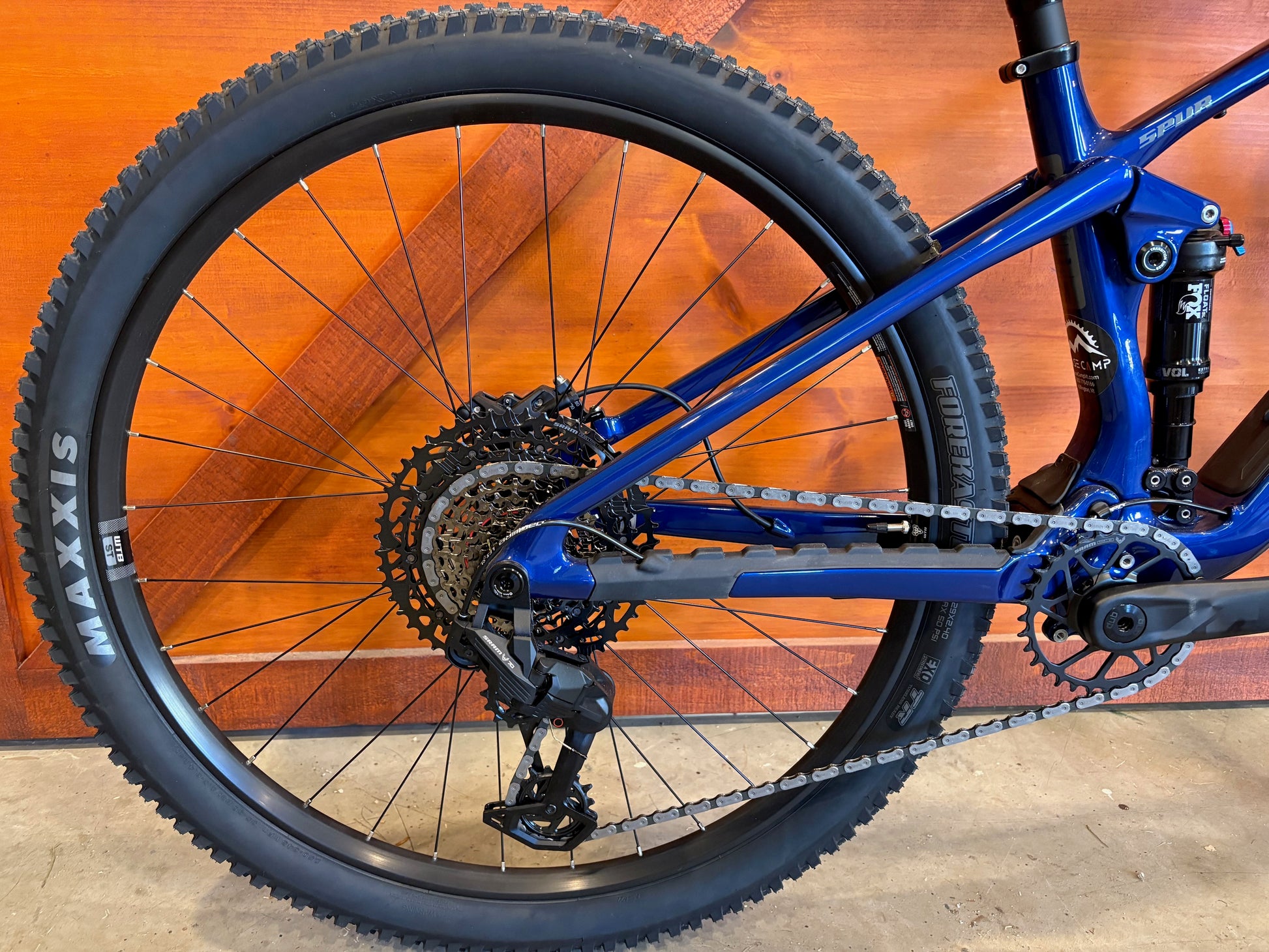

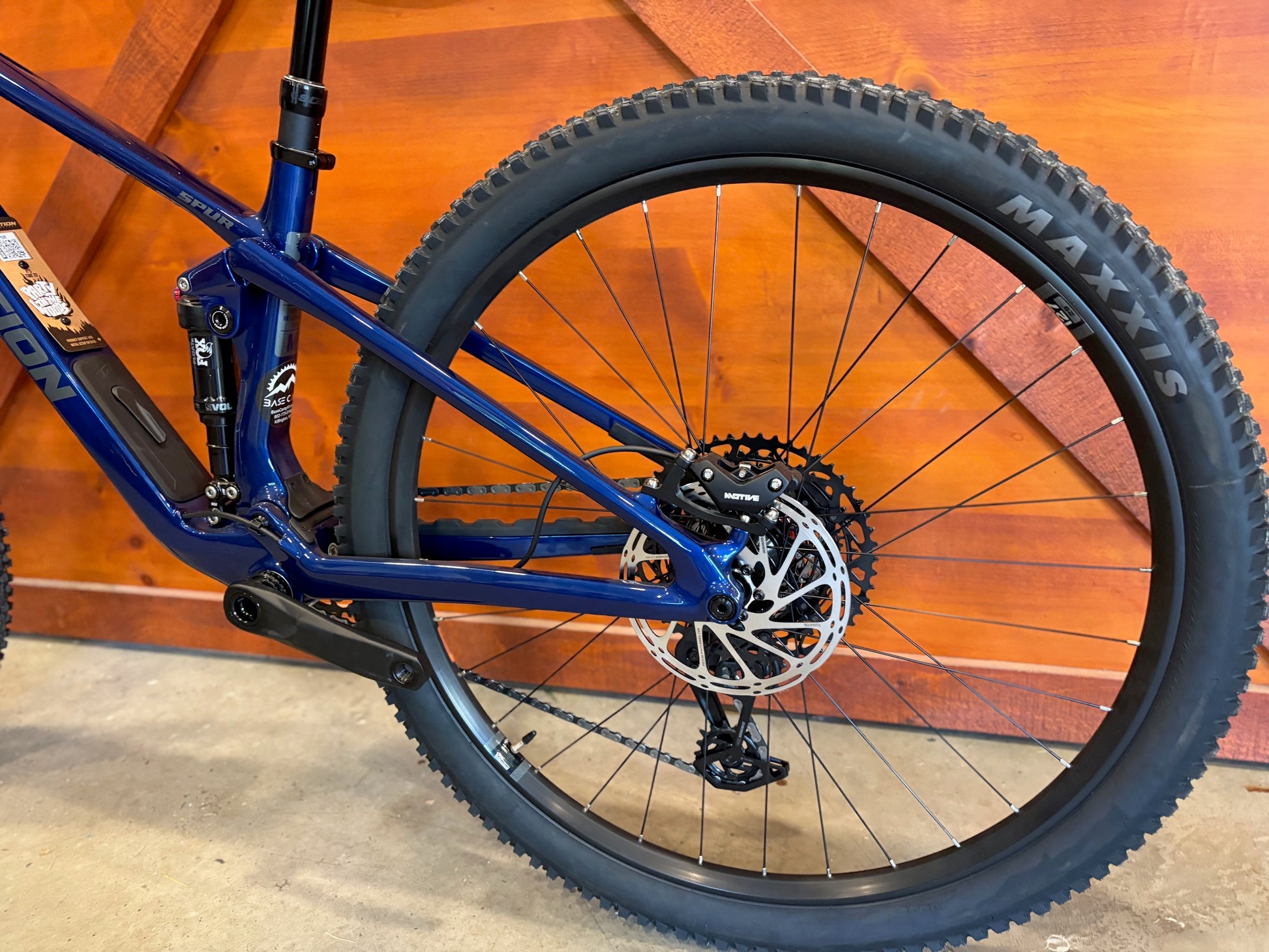

Rear Derailleur
SRAM Eagle 70 Transmission, 12-speed
ISCG Tabs
ISCG05
Chainguide
None
Cranks
SRAM Eagle 70 Transmission Alloy DUB, 165mm length
Chainrings
SRAM Eagle 70 Transmission, 32 tooth
Bottom Bracket
SRAM DUB, 73mm English/BSA threaded
Pedals
None
Chain
SRAM Eagle 70 Transmission Flattop, 12-speed
Cassette
SRAM Eagle Transmission XS-1270, 12-speed, 10-52 tooth
Rims
WTB ST i27 Alloy, 27mm inner width
Hubs
Novatec, D791SB 15mm x 110mm (Boost) front, D902SB 12mm x 148mm (Boost) rear with HG driver
Spokes
Pillar, double-butted
Tires
Maxxis Forekaster, 3C MaxxTerra compound, EXO casing, 29" x 2.4"
Saddle
SDG Bel-Air V3
Seatpost
SDG Tellis dropper
Drop: 150mm (SM), 170mm (MD), 200mm (LG/XL)
Seatpost Diameter
31.6mm
Seatpost Clamp
Single bolt, 37.0mm
Rear Dropout / Hub Dimensions
12mm x 148mm (Boost)
Max. Tire Size
29" x 2.4"
Bottle Cage Mounts
One inside front triangle, plus accessory mounts under top tube
Colors

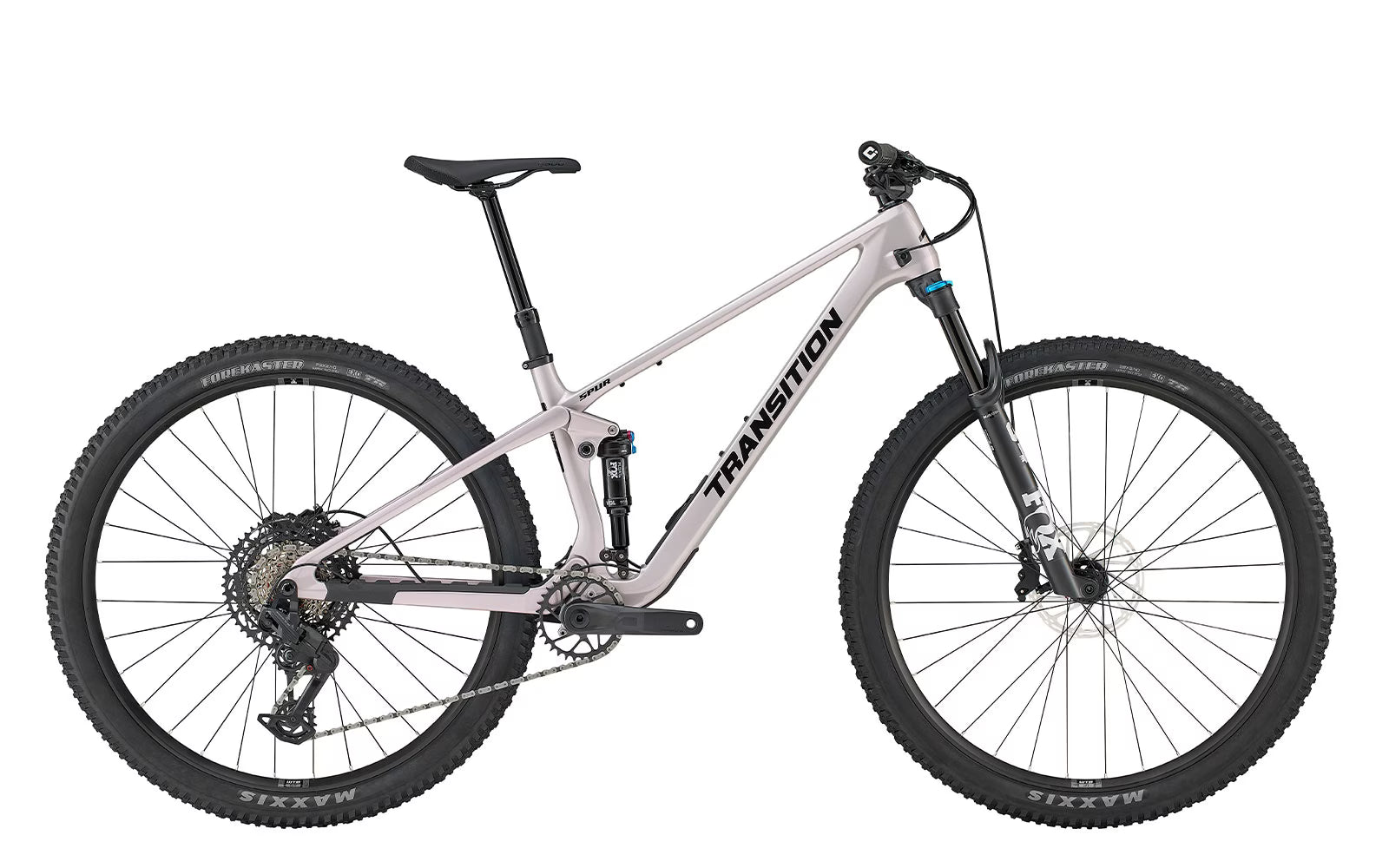

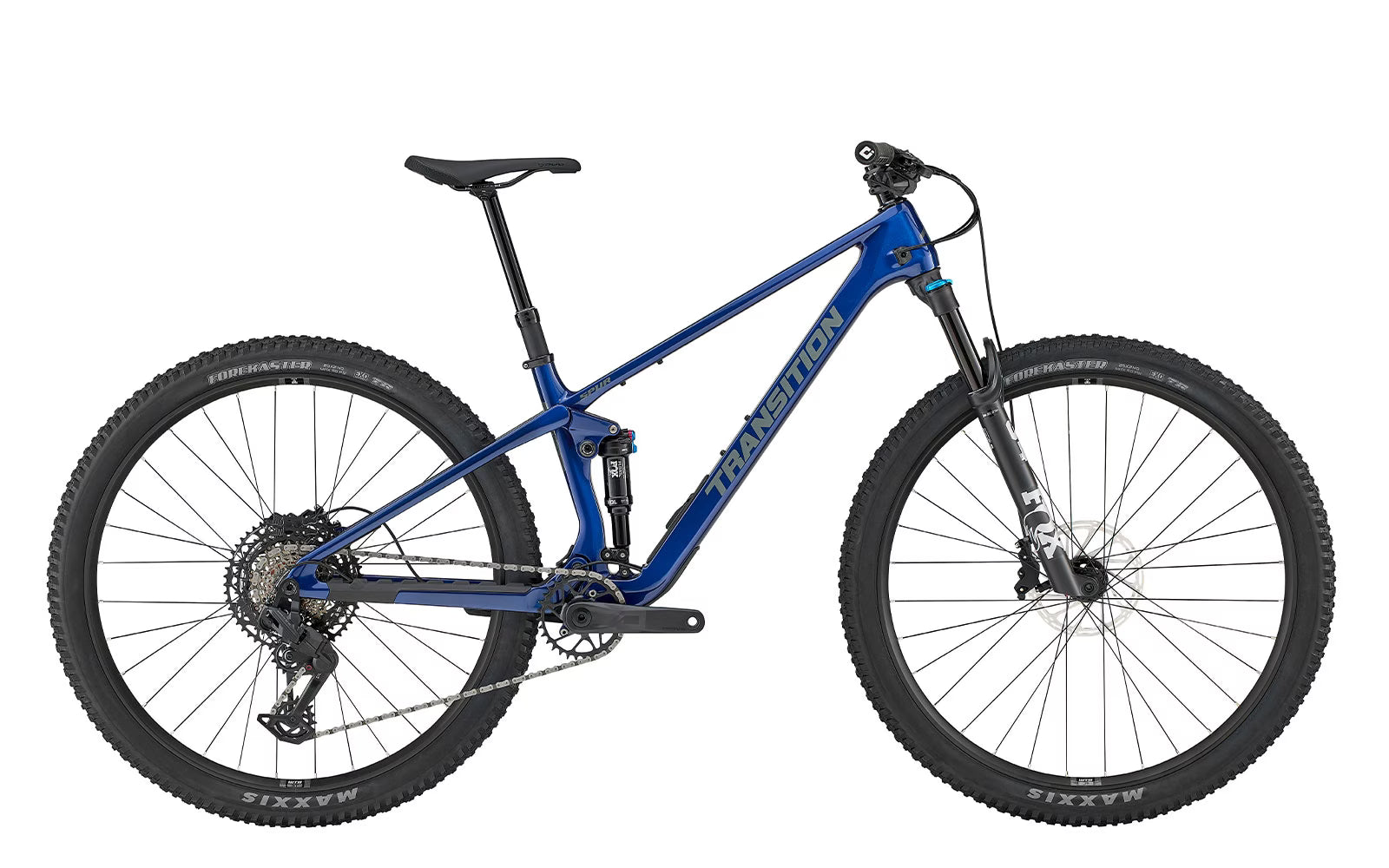

Frostberry, Nightshade
Warranty
Lifetime frame
Weight
28 lb 13 oz (13,070 g)
