TRANSITION BIKES

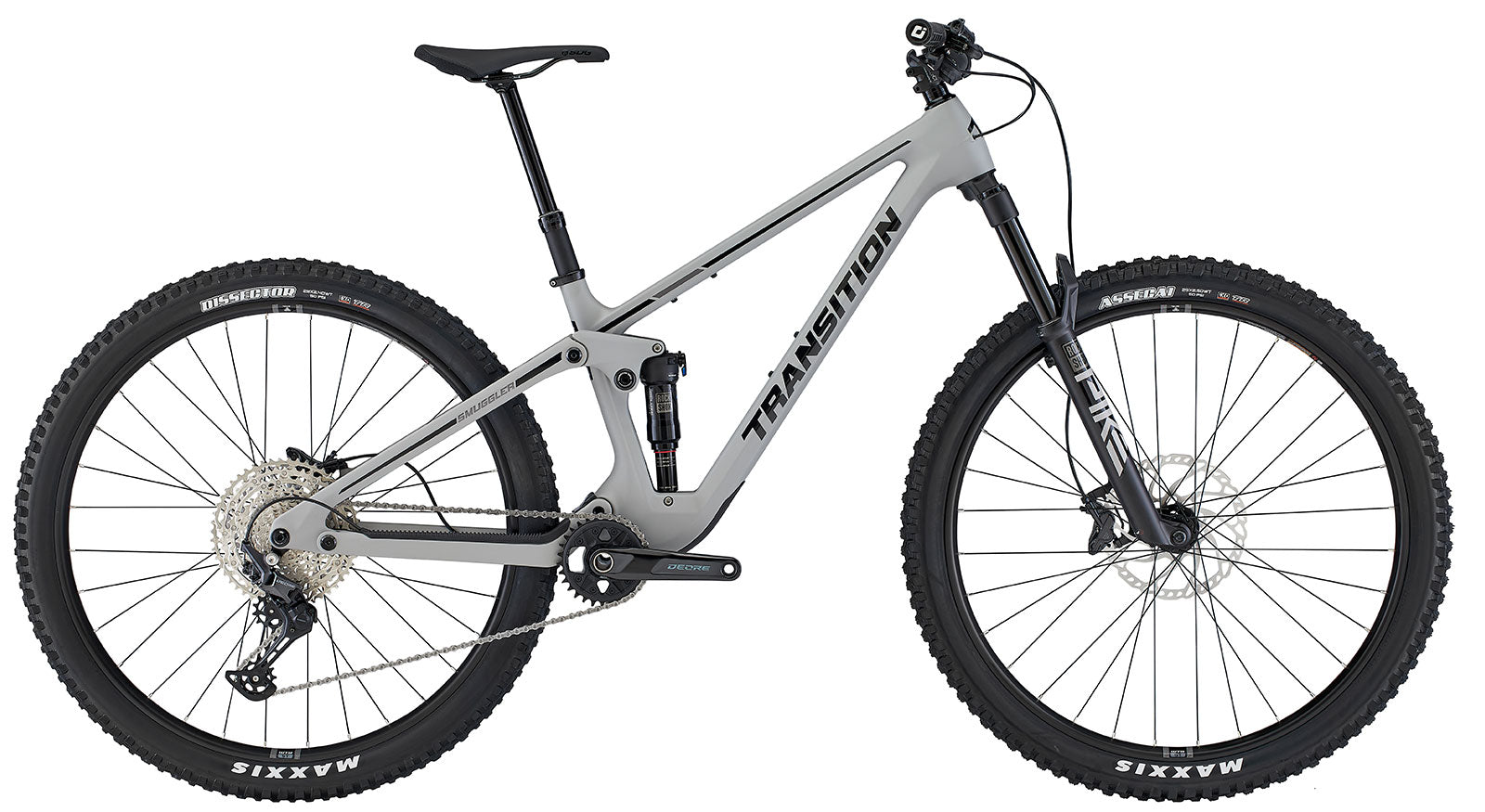

Transition Smuggler Carbon Deore

Transition Smuggler Carbon Deore

$4,999.00 USD
$4,999.00 USD
Sale Sold out
Shipping calculated at checkout.
Title
THE TRUSTY TOOL FOR ANY TRAIL
Like the reliable tool you grab for every job, the Smuggler is the go-to bike for any trail pointed up, down, and all around.
With dual 29 inch wheels, 130mm rear and 140mm front travel, the Smuggler may just be the most versatile bike in our lineup. A highly progressive leverage curve and comfortable, confidence-inspiring geo make it eager to keep going mile after mile while remaining surefooted in even the most technical terrain. Sitting squarely between the Spur and Sentinel in travel, geometry, and capability, it shares qualities of both. Inspiring and rewarding to hammer on your favorite singletrack, while never holding you back when the trail gets steep, the Smuggler will make sure you enjoy it all.
Wheel Size
29"
Frame Material
Carbon Fiber
Frame Material Details
Carbon front and rear triangles; molded chainstay, seatstay, and lower down tube protection
Rear Travel
130mm
Rear Shock
RockShox Deluxe Select+, 210mm length x 50mm stroke
Fork
RockShox Pike Base, 35mm stanchions
Fork Travel
140mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
FSA No.42/48/ACB, IS42 upper, IS52 lower
Handlebar
Race Face Chester, 800mm width, 35mm clamp diameter
Rise: 20mm (SM), 35mm (MD-XXL)
Stem
Race Face Aeffect R, 40mm length, 35mm bar clamp
Grips
ODI Elite Flow, lock-on
Brakes
Shimano Deore M6120, 4-piston
Rotors: Shimano RT66, 203mm front, 180mm rear
Brake Levers
Shimano Deore M6100
Drivetrain
1x
Shifters
Shimano Deore M6100, 12-speed, I-SPEC EV mounting bracket
Front Derailleur
None
Rear Derailleur
Shimano Deore M6100, 12-speed, SGS cage
ISCG Tabs
ISCG05
Chainguide
None
Cranks
Shimano Deore M6100 Alloy, 170mm length
Chainrings
Shimano Deore M6100, 30 tooth
Bottom Bracket
73mm English/BSA threaded
Pedals
None
Chain
Shimano Deore M6100, 12-speed
Cassette
Shimano Deore M6100, 12-speed, 10-51 tooth
Rims
WTB ST i30 Alloy, 30mm inner width
Hubs
Novatec, D791SB 15mm x 110mm (Boost) front, D902SB 12mm x 148mm (Boost) rear with MICRO SPLINE driver
Spokes
Pillar, double-butted
Tires
Front: Maxxis Assegai, EXO casing, 29" x 2.5"
Rear: Maxxis Dissector, EXO casing, 29" x 2.4"
Saddle
SDG Bel-Air V3
Seatpost
SDG Tellis dropper
Drop: 150mm (SM), 170mm (MD), 200mm (LG), 230mm (XL/XXL)
Seatpost Diameter
31.6mm
Seatpost Clamp
Single bolt, 37.0mm
Rear Dropout / Hub Dimensions
12mm x 148mm (Boost)
Max. Tire Size
29" x 2.4"
Bottle Cage Mounts
One inside front triangle, plus accessory mounts under top tube
Colors
Juniper, Slab Grey
Warranty
Lifetime frame
