PIVOT

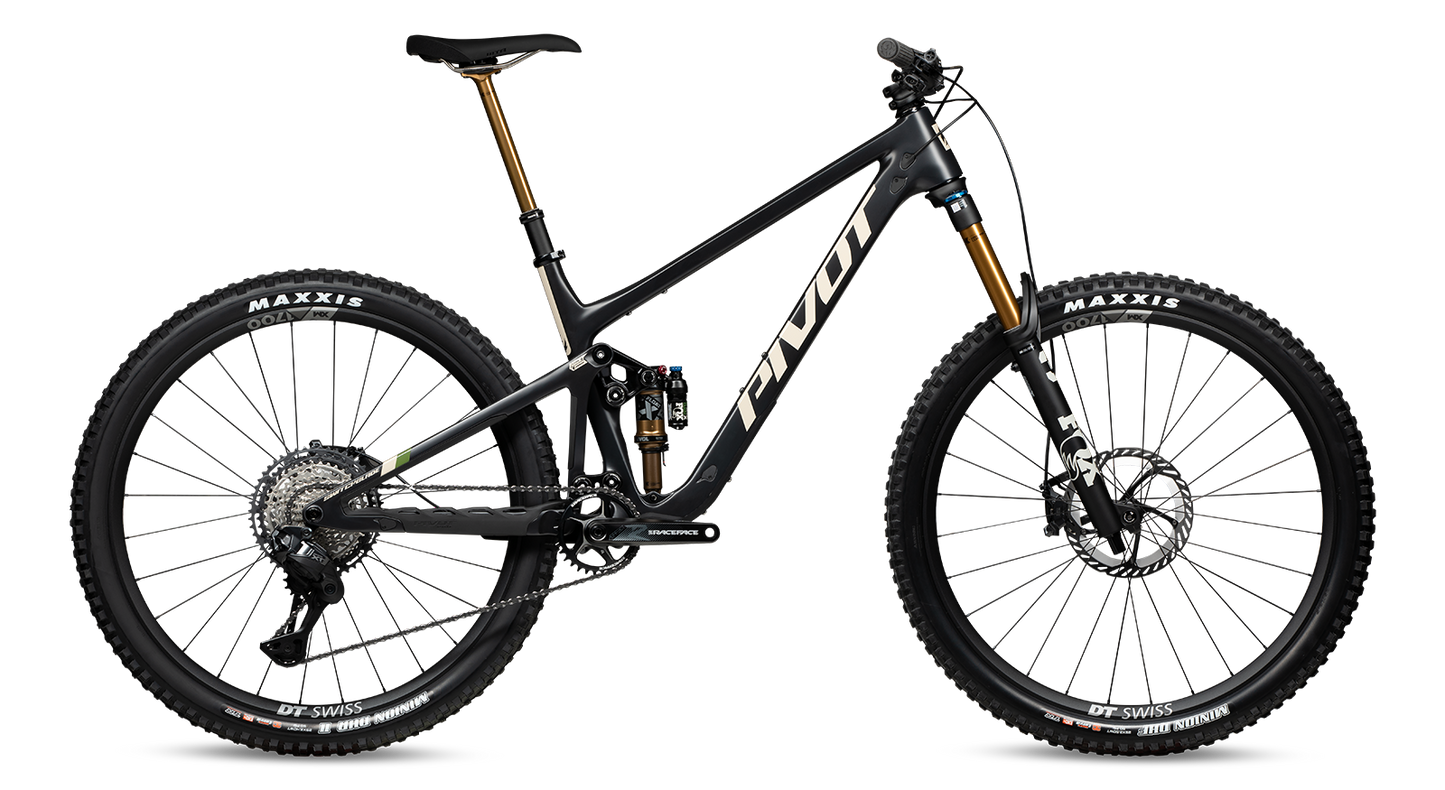

Pivot Switchblade PRO XT DI2 with 29" Alloy wheels

Pivot Switchblade PRO XT DI2 with 29" Alloy wheels

$8,999.00 USD
$8,999.00 USD
Sale Sold out
Shipping calculated at checkout.
Size

The Switchblade is built for riders who demand total versatility, combining playful agility with big-terrain composure. With a refined, responsive chassis and geometry tuned for speed and control, it climbs efficiently, carves aggressively and swallows every hit along the way

Specs from Vital MTB:

Intended Use
Trail
Enduro / All-Mountain
Rider
Unisex
Wheel Size
29"
Frame Material
Carbon Fiber
Frame Material Details
Hollow Core carbon fiber front and rear triangles; molded chainstay, seatstay, and lower down tube protection
Rear Travel
142mm
Rear Shock
FOX FLOAT X Factory, Kashima coating, trunnion mount, 185mm length x 55mm stroke
Fork
FOX FLOAT 36 Factory, GRIP X2 damper, Kashima coating, 44mm offset
Fork Travel
160mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
Pivot Precision, sealed cartridge bearings
Handlebar
Phoenix Team Low Rise Carbon
Width: 760mm (XS), 780mm (SM/MD), 800mm (LG/XL)
Stem
Phoenix Team Enduro/Trail
Length: 35mm (XS), 45mm (SM-XL)
Grips
Phoenix Factory, lock-on
Brakes
Shimano Deore XT M8220, 4-piston
Rotors: Shimano Deore XT, CENTER LOCK, 203mm front, 180mm rear
Brake Levers
Shimano Deore XT
Drivetrain
1x
Shifters
Shimano Deore XT M8250 Di2, 12-speed, electronic wireless, I-SPEC EV mounting bracket
Front Derailleur
None
Rear Derailleur
Shimano Deore XT M8250 Di2, 12-speed, electronic wireless, SGS cage
ISCG Tabs
ISCG05
Chainguide
None
Cranks
Race Face Aeffect R Alloy
Chainrings
Race Face Aeffect R, 32 tooth
Bottom Bracket
92mm press-fit
Pedals
None
Chain
Shimano Deore XT M8100, 12-speed
Cassette
Shimano Deore XT M8200, 12-speed, 10-51 tooth
Rims
DT Swiss XM 1700, 30mm width
Option: DT Swiss XMC 1501 Carbon, 30mm width
Hubs
DT Swiss 350, 15mm x 110mm (Boost) front, 12mm x 157mm (SuperBoost+) rear with 36-tooth Star Ratchet freehub and MICRO SPLINE driver
Option (with XMC 1501 rims): DT Swiss 240
Spokes
DT Swiss wheelset
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra compound, EXO+ casing, TR, 29" x 2.5" WT
Rear: Maxxis Minion DHR II, 3C MaxxTerra compound, EXO+ casing, TR, 29" x 2.4" WT
Saddle
XS/SM: WTB High Tail Trail Pro Phoenix
MD-XL: WTB Volt Pro Phoenix, medium width
Seatpost
FOX Transfer Factory dropper, Kashima coating
Drop: 125mm (XS), 150mm (SM), 175mm (MD), 200mm (LG/XL)
Seatpost Diameter
31.6mm
Seatpost Clamp
Single bolt, 36.4mm
Rear Dropout / Hub Dimensions
12mm x 157mm (SuperBoost+)
Max. Tire Size
29" x 2.5" or 27.5" x 2.8"
Bottle Cage Mounts
One inside front triangle, one under down tube, plus accessory mounts under top tube; compatible with Pivot Dock Tool System
Colors
Blue Neptune, Stealth Mojave
Warranty
10 years frame, 5 years Pivot/Phoenix components, 1 year paint/finish/bearings
