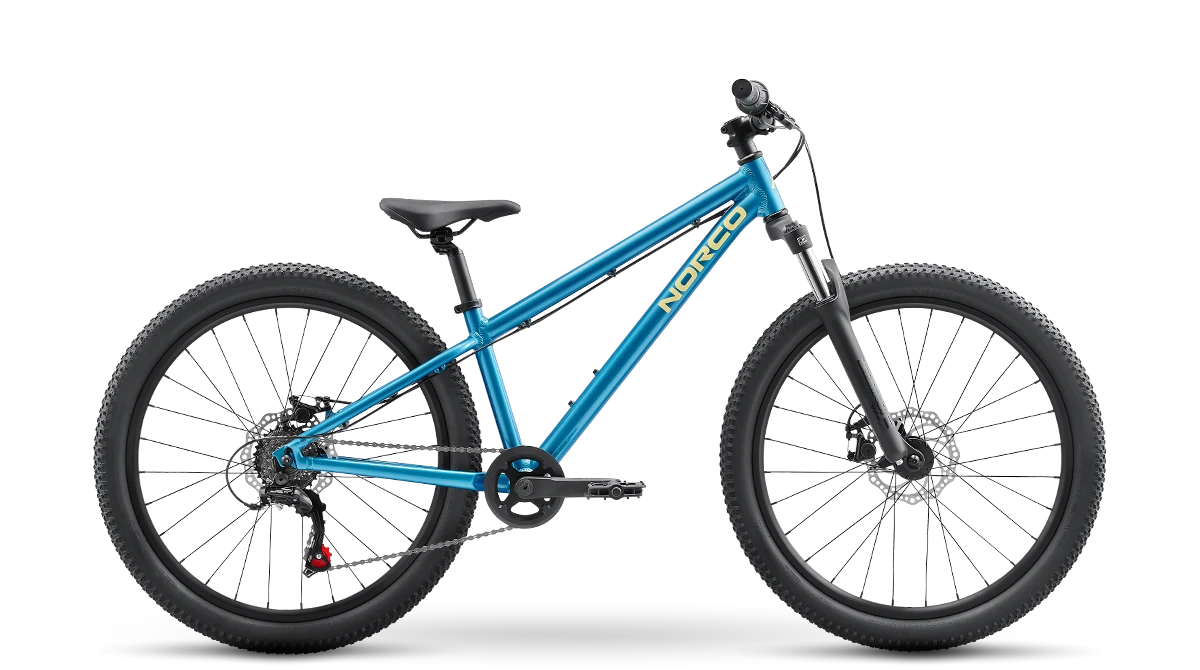

Norco Storm 24

Progress quickly with Storm 24.

Storm 24’s lightweight, durable aluminum frame and size-specific fork travel of 80mm combine with a simple, lightweight drivetrain, quality mechanical disc brakes and optimized fit for riders from 4’2” to 4’8”, building and a love for dirt that’ll last a lifetime.

Frameset
Frame    Aluminum, 9x135mm QR, 24"
Fork    SR Suntour XCT Coil w/Soft Spring and Preload, 80mm, 9X100 QR
Drivetrain
Rear Shifter    Shimano SL-RV200-6R, 6sp, gripshift
Rear Derailleur    Shimano TZ-500, 6sp, Direct mount
Crankset    Alloy 3pc, 140mm, 28T Narrow Wide
Bottom Bracket    Sealed bearing, ST 68mm
Cassette    Shimano MF-TZ500-6, 14-28T, 6sp, Freewheel
Chain    KMC Z6
Brakes
Front Brake    Tektro Aries, Resin pads, Mechanical Disc
Front Brake Rotor    160mm, 6-Bolt
Rear Brake    Tektro Aries, Resin pads, Mechanical Disc
Rear Brake Rotor    160mm, 6-Bolt
Brake Levers    Tektro Aries alloy Jr. Levers w/reach adjust
Components
Handlebar    Alloy Jr. Riser, 600mm, 30mm Rise
Stem    Alloy 40mm Length, 31.8mm Clamp
Seatpost    Norco Alloy 27.2mm, 250mm length
Headset    External Cup Ball Bearing, 1-1/8" EC 34
Headset Spacer    1x10mm , 2x5mm
Saddle    Norco Jr XC, Steel Rail
Grips    Norco Youth, 115mm Length
Pedals    Jr. MTB Flat, 9/16"
Seatpost Clamp    Norco Alloy Bolted, 31.8mm ID
Wheels
Front Hub    Formula DC-1420 , 9x100mm QR, 28h, 6-bolt
Rear Hub    Formula DC-31R-7S, 9x100mm QR, Freewheel, 28h, 6-bolt
Rims    Aluminum DW, 28h, 24" MTB
Front Tire    CY Trail, 24x2.25", Wire
Rear Tire    CY Trail, 24x2.25", Wire
Spokes/Nipples    Stainless Steel w/Brass Nipples - Black
Weight
Weight    12.04 kg (26.5 lbs)
