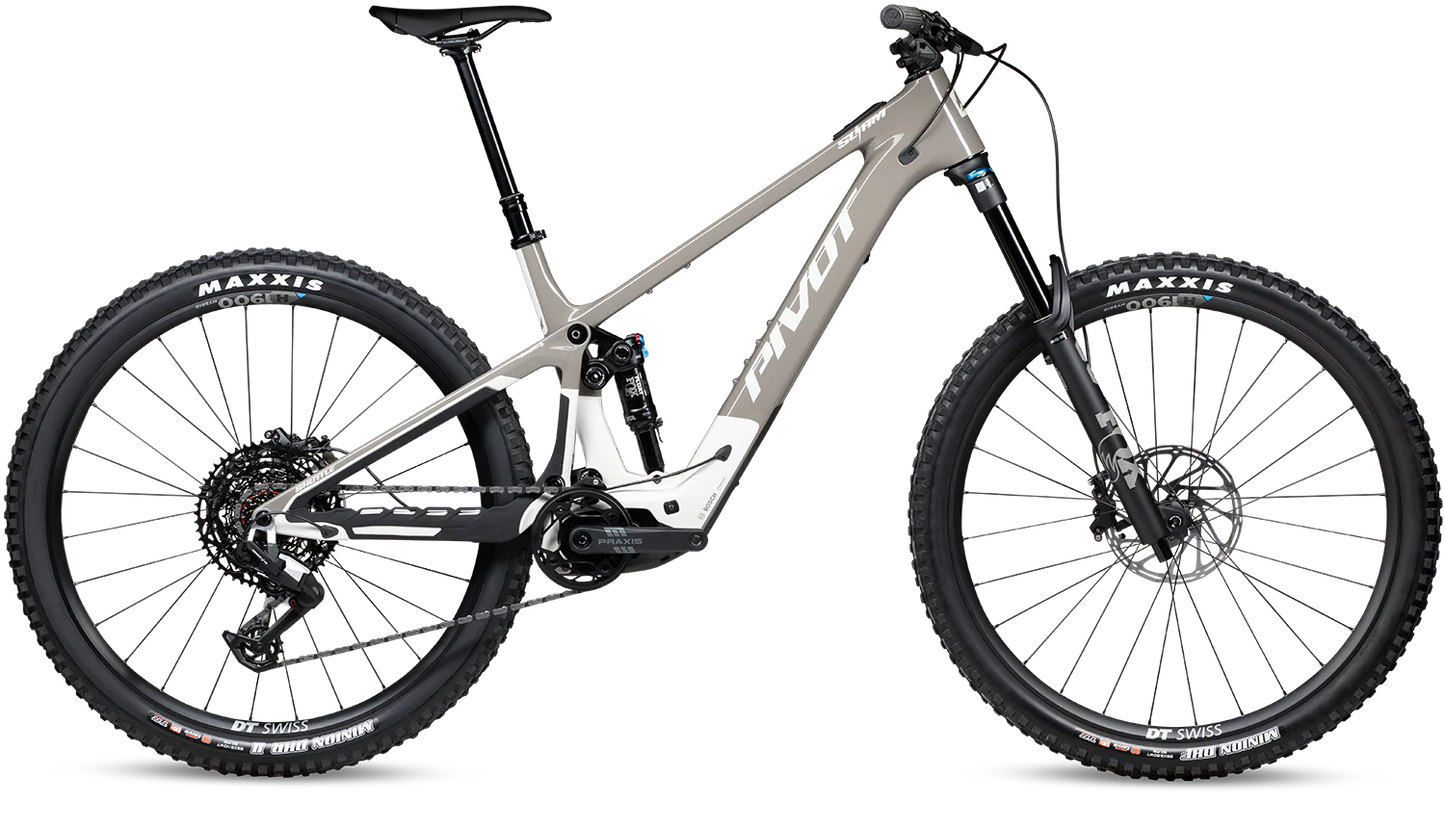

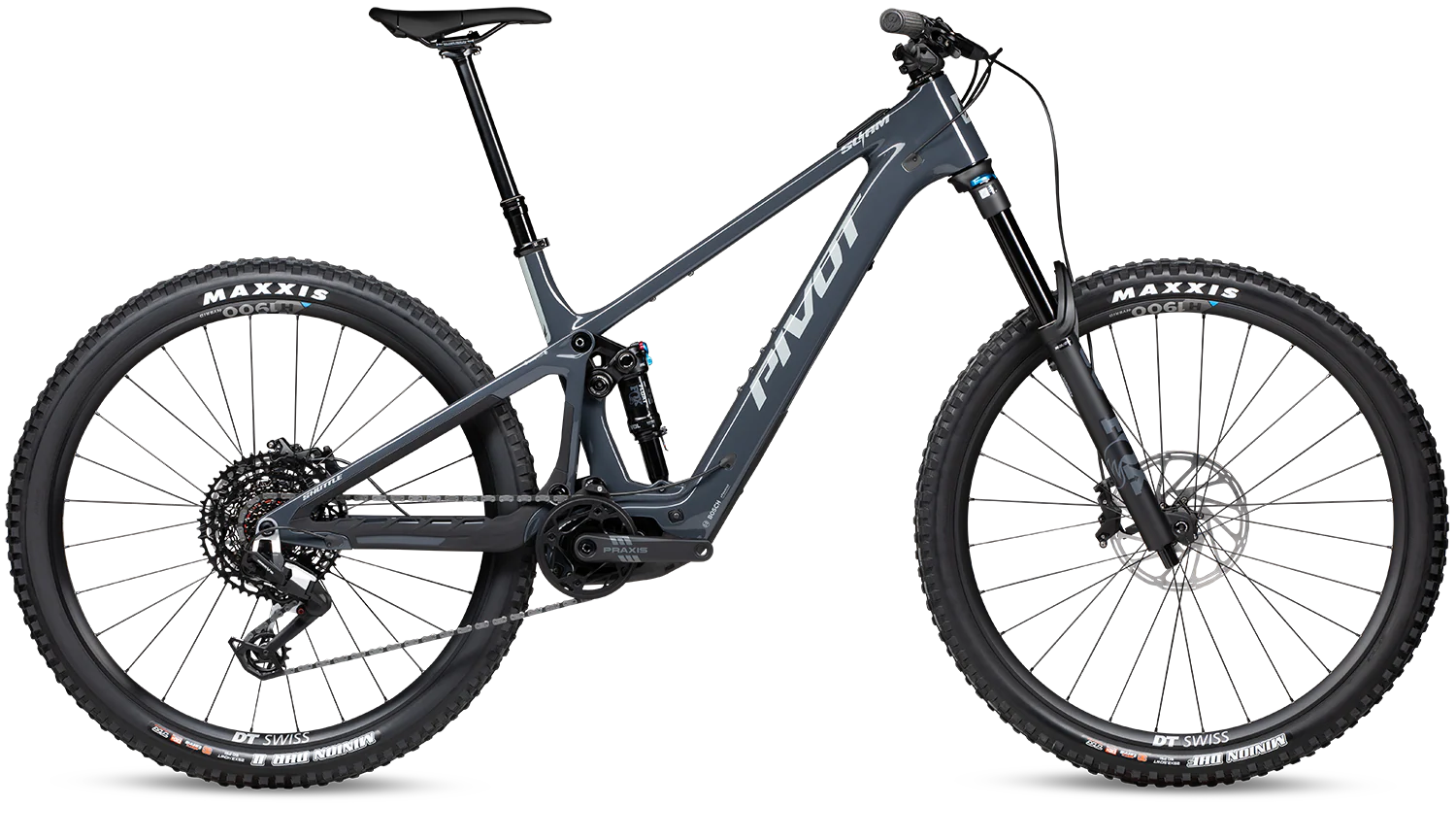

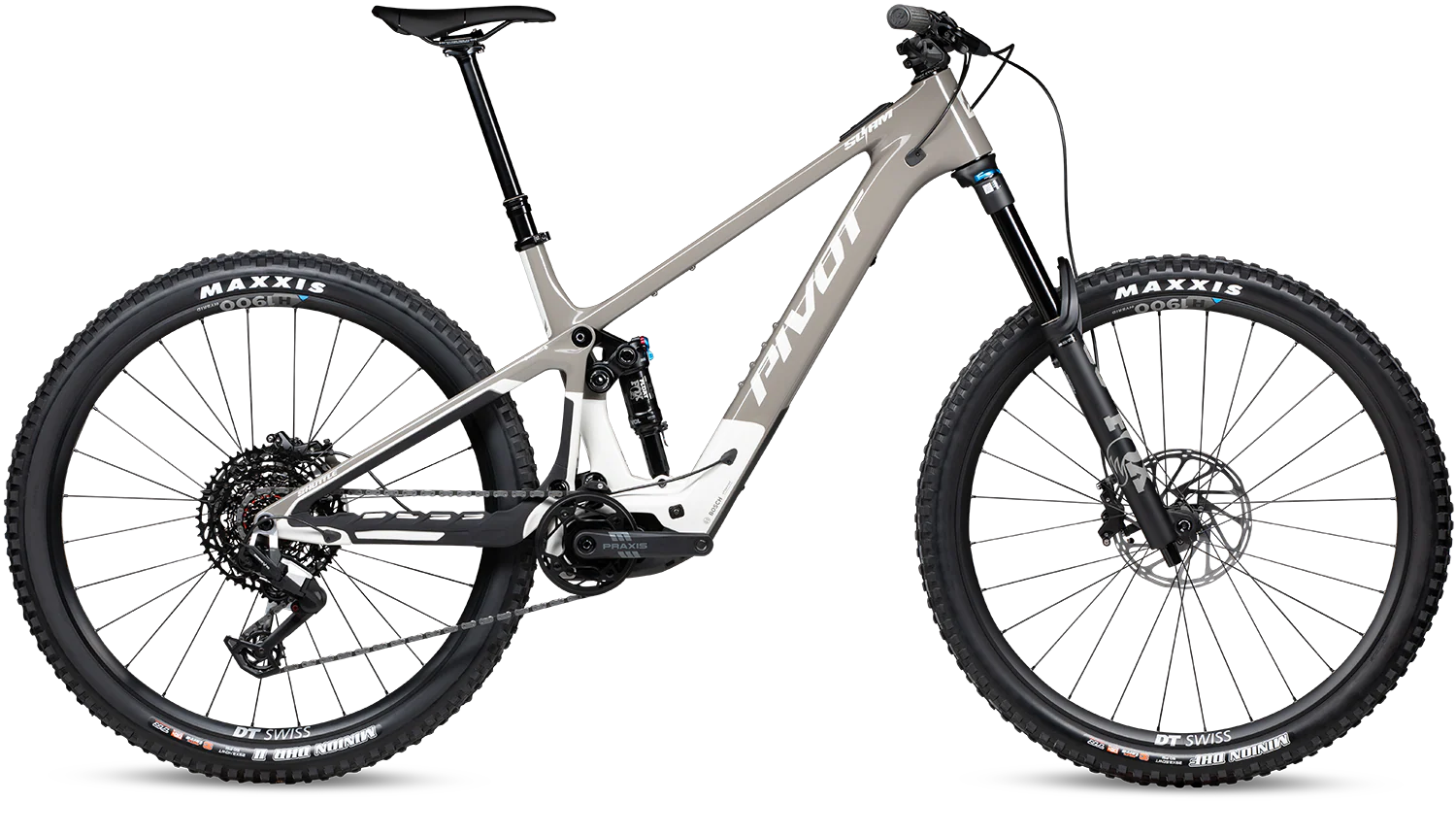

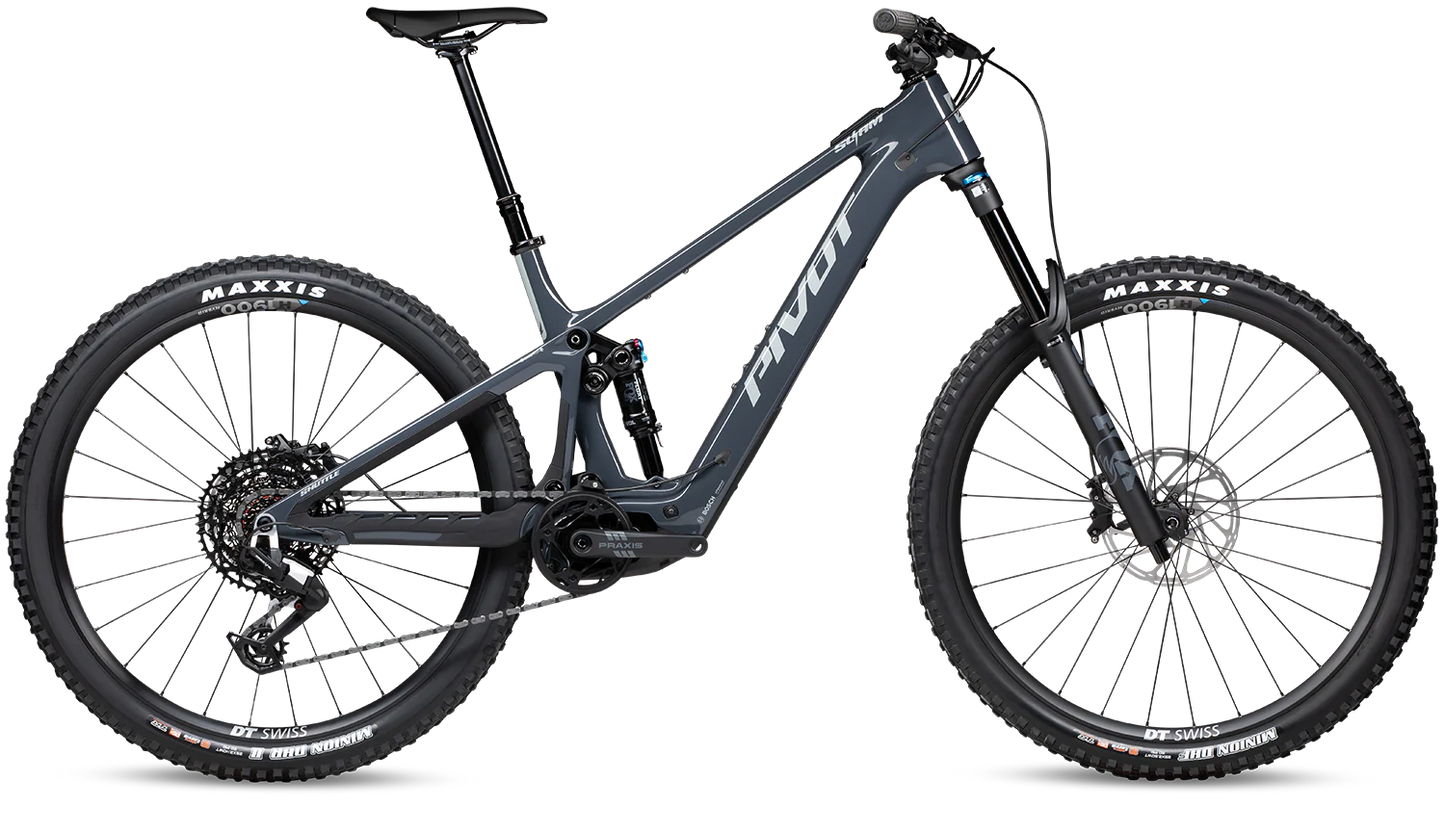

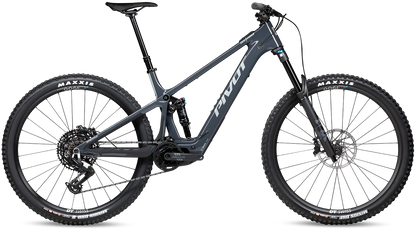

Pivot Shuttle SL-AM Ride Eagle 70/90

Pivot Shuttle SL-AM Ride Eagle 70/90

$8,499.00 USD
$8,499.00 USD
Sale Sold out
Shipping calculated at checkout.
Size

Born from the fusion of agility and electric ferocity, the Shuttle SL/AM is built to blur boundaries. At under 40 pounds, its featherweight carbon frame and Bosch Performance Line SX system deliver a seamless surge of power that feels alive underfoot.

  • Full-carbon frame constructed with Pivot’s proprietary molding technology
  • Bosch Performance SX lightweight drive unit on every build level
  • Long-lasting 400Wh battery
  • Bosch PowerMore 250 range extender compatible
  • Adjustable geometry via Pivot flip chip
  • 160mm FOX 36 fork
  • 150mm rear wheel travel
  • Mixed-wheel setup optional
  • Clean internal routing with Pivot Cable Port System
Wheel Size
29"
Mixed Wheel Size
E-Bike Class
Class 1: Pedal Assist (Pedelecs)
Motor
Bosch Performance SX, 55Nm max torque, 600 W peak power
Battery
Bosch, integrated
Option: Bosch PowerMore 250 Wh range extender
Battery Capacity
400 Wh
Display/Remote
Bosch System Controller display, top tube integrated; Bosch wireless remote
Modes
Turbo, eMTB-Shortcrank, Sport, Tour+, and Walk Assist are loaded stock; Eco, Tour, eMTB, and Auto modes available through Bosch eBike Flow Mobile App
Max Speed with Assist
USA/Canada/New Zealand: 20 mph (32.19 km/h)
Other: 15.5 mph (24.94 km/h)
Frame Material
Carbon Fiber
Frame Material Details
Carbon front and rear triangles; molded chainstay, seatstay, and lower down tube protection
Rear Travel
150mm
Rear Shock
FOX FLOAT Performance, trunnion mount, 185mm length x 55mm stroke
Fork
FOX FLOAT 36 Performance, GRIP damper, 44mm offset
Fork Travel
160mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
Pivot Precision, sealed cartridge bearings, ZS49 upper, ZS56 lower
Handlebar
Phoenix Race Low Rise Aluminum
Width: 780mm (XS-MD), 800mm (LG-XL)
Stem
Phoenix Team Enduro/Trail, 45mm length
Grips
Phoenix Factory, lock-on
Brakes
SRAM DB8, 4-piston
Rotors: SRAM CenterLine, CENTER LOCK, 200mm
Brake Levers
SRAM DB8 Stealth, tooled reach adjust
Drivetrain
1x
Shifters
SRAM Eagle 90 Transmission, 12-speed
Front Derailleur
None
Rear Derailleur
SRAM Eagle 90 Transmission, 12-speed
Chainguide
Upper keeper
Cranks
Praxis Alloy eCranks, 160mm length
Chainrings
34 tooth
Pedals
None
Chain
SRAM Eagle 70 Transmission Flattop, 12-speed
Cassette
SRAM Eagle Transmission XS-1270, 12-speed, 10-52 tooth
Rims
DT Swiss Hybrid H 1900 Alloy, 30mm width
Hubs
DT Swiss, 15mm x 110mm (Boost) front, 12mm x 157mm (SuperBoost) rear with HG driver
Spokes
DT Swiss wheelset
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra compound, EXO+ casing, TR, 29" x 2.5” WT
Rear: Maxxis Minion DHR II, 3C MaxxTerra compound, EXO+ casing, TR, 2.4” WT
Saddle
SM: WTB/Phoenix High Tail Trail Race
XS, MD-XL: Phoenix RaceGrip Ride
Seatpost
TranzX YSP23GLS dropper, adjustable travel
Drop: 130-150mm (XS-SM), 150-170mm (MD), 180-200mm (LG-XL)
Seatpost Diameter
31.6mm
Seatpost Clamp
Single bolt, 36.4mm
Rear Dropout / Hub Dimensions
12mm x 157mm (SuperBoost)
Max. Tire Size
27.5" x 2.6" (all sizes) or 29" x 2.5" (SM-XL only)
Bottle Cage Mounts
One inside front triangle, plus accessory mounts under top tube
Colors
Brownstone, Gloss Grey
Warranty
10 years frame; 5 years Pivot/Phoenix components; 1 year paint/finish/bearings
Weight

Miscellaneous
• dw-link rear suspension design
• XS has mixed ("Mullet") wheels: 29" front, 27.5" rear; MD-XL have 29" wheels front/rear and are compatible with 27.5" rear wheels
• Geometry adjustable via two-position flip chip in rocker link
• Dual Cable Port System internal cable routing
• SRAM UDH (Universal Derailleur Hanger)
• Power settings customizable via Bosch eBike Flow Mobile App
