PIVOT

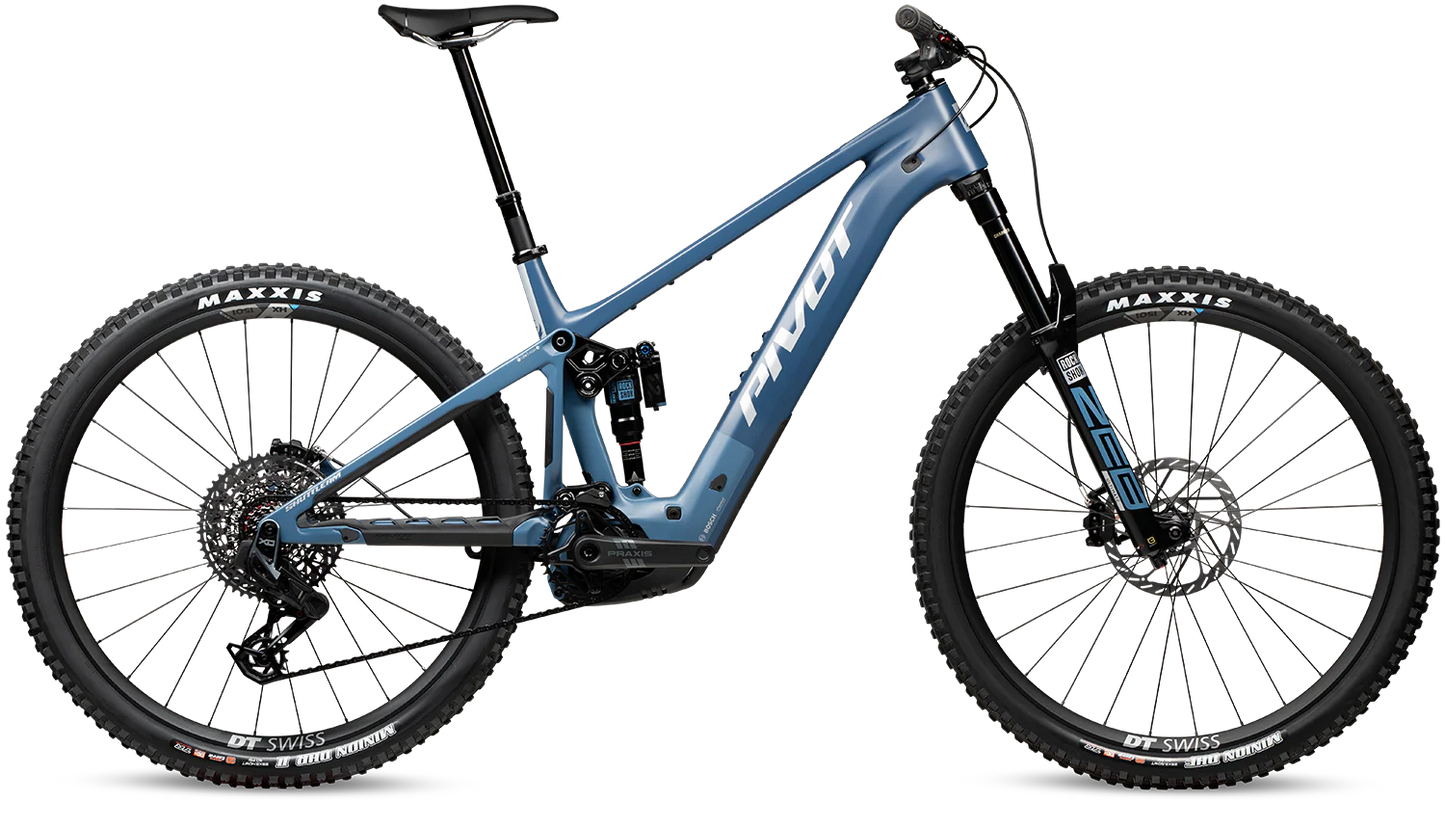

Pivot Shuttle AM Pro X0 Eagle Transmission

Pivot Shuttle AM Pro X0 Eagle Transmission

$11,999.00 USD
$11,999.00 USD
Sale Sold out
Shipping calculated at checkout.
Title

Power, precision and possibility, perfectly balanced. The Shuttle AM redefines what a full-power eMTB can be, delivering next-gen Bosch performance in a chassis built for big-mountain versatility. It climbs with unrelenting drive, descends with absolute composure and comes alive on the trail.

Product Details
Ultra-Light hollow core carbon frame
Featuring Bosch's Gen 5 Performance Line CX (Ride) and CX Race motors (Pro & Team)
Long-range 800Wh battery on all build levels
Bosch 250wh PowerMore range extender compatible
Kiox 400C display (Pro & Team)
Wheel mounted speed sensor
Wireless Bosch remote
160mm fork
Flip chip upper link mount
Mixed wheel compatible
Pivot Dock Tool system compatible
Water bottle clearance on all sizes
150mm of progressive rear travel
Injection molded rubberized frame protection
Full internal routing with Pivot cable port system

Wheel Size
29"
E-Bike Class
Class 1: Pedal Assist (Pedelecs)
Motor
Bosch Performance CX-R (Race Edition) Gen 5, 100 Nm max torque, 750 W max power, 400% max support in Race Mode, Extended Boost option
Battery
Integrated
Option: Bosch PowerMore 250 Wh range extender
Battery Capacity
800 Wh
Display/Remote
Bosch Kiox 400C display, top tube integrated; Bosch wireless Mini Remote
Modes
Race, Turbo, eMTB+, Tour+, Walk Assist
Max Speed with Assist
USA/Canada/New Zealand: 20 mph (32.2 km/h)
Other: 15.5 mph (25 km/h)
Frame Material
Carbon Fiber
Frame Material Details
Hollow Core carbon front and rear triangles; injection molded chainstay, seatstay, and lower down tube protection
Rear Travel
150mm
Rear Shock
RockShox Super Deluxe Ultimate, trunnion mount
Fork
RockShox ZEB Ultimate, 38mm stanchions, 44mm offset
Fork Travel
160mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
Pivot Precision, sealed cartridge bearings, ZS49 upper, ZS56 lower
Handlebar
Phoenix Race Low Rise Carbon
Stem
Phoenix Team Enduro/Trail
Grips
Phoenix Factory, lock-on
Brakes
SRAM Maven Silver, 4-piston
Rotors: SRAM HS2, CENTER LOCK, 200mm
Brake Levers
SRAM Maven Silver Stealth, tool-free reach adjust and contact point adjust
Drivetrain
1x
Shifters
SRAM Eagle Pod Controller, 12-speed, AXS electronic wireless
Front Derailleur
None
Rear Derailleur
SRAM X0 Eagle Transmission, 12-speed, AXS electronic wireless
Chainguide
Upper slider
Cranks
Praxis Alloy eCranks E-MTB, 160mm length
Chainrings
34 tooth
Pedals
None
Chain
SRAM X0 Eagle Transmission, 12-speed
Cassette
SRAM X0 Eagle Transmission XS-1295, 12-speed, 10-52 tooth
Rims
DT Swiss HX 1501 Alloy, 30mm inner width
Hubs
DT Swiss 350, 15mm x 110mm (Boost) front, 12mm x 157mm (SuperBoost+) with 36-tooth Star Ratchet freehub and XD driver
Spokes
DT Swiss wheelset
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra compound, EXO+ casing, TR, 29" x 2.5” WT
Rear: Maxxis Minion DHR II, 3C MaxxTerra compound, EXO+ casing, TR, 29" x 2.4” WT
Saddle
Pivot Ride E-Bike
Seatpost
OneUp V3 dropper
Drop: 150mm (SM), 180mm (MD), 210mm (LG/XL)
Seatpost Diameter
31.6mm
Seatpost Clamp
Single bolt, 36.4mm
Rear Dropout / Hub Dimensions
12mm x 157mm (SuperBoost+)
Max. Tire Size
29" x 2.5" or 27.5" x 2.6"
Bottle Cage Mounts
One inside front triangle, plus accessory mounts under top tube (compatible with Pivot Dock Tool System)
Colors
Badlands Brown, Blue Dark Sky
Warranty
10 years frame; 5 years Pivot/Phoenix components; 1 year paint/finish/bearings
Weight

Miscellaneous
• dw-link rear suspension design
• Geometry adjustable via two-position flip chip in upper linkage
• Compatible with mixed ("Mullet") setups (29" front, 27.5" rear) with flip chip in High position
• Cable Port System internal cable routing, with new port design
• SRAM UDH (Universal Derailleur Hanger)
• New charging port design for better protection from the elements
• Power settings customizable via Bosch eBike Flow Mobile App
