PIVOT

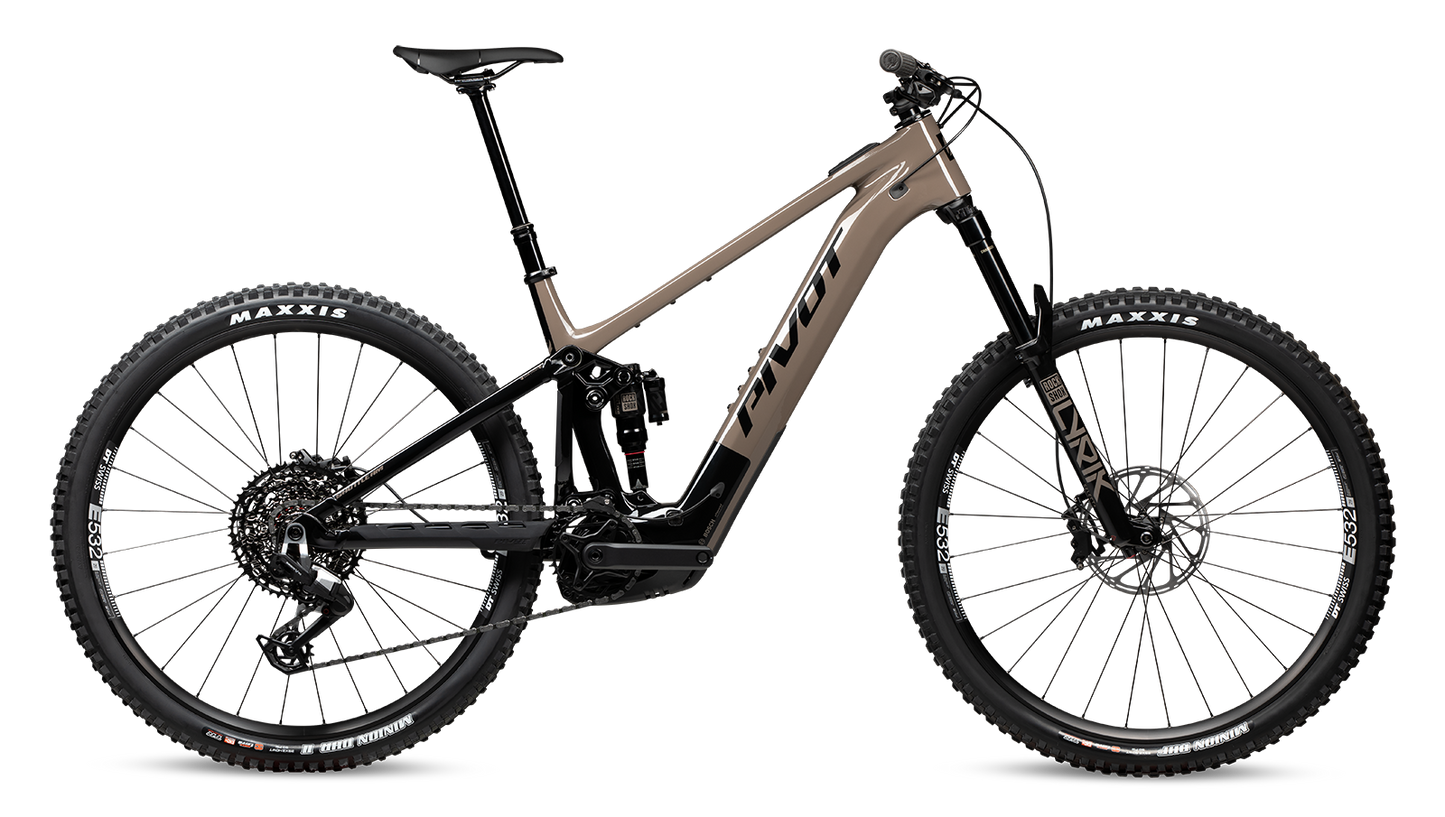

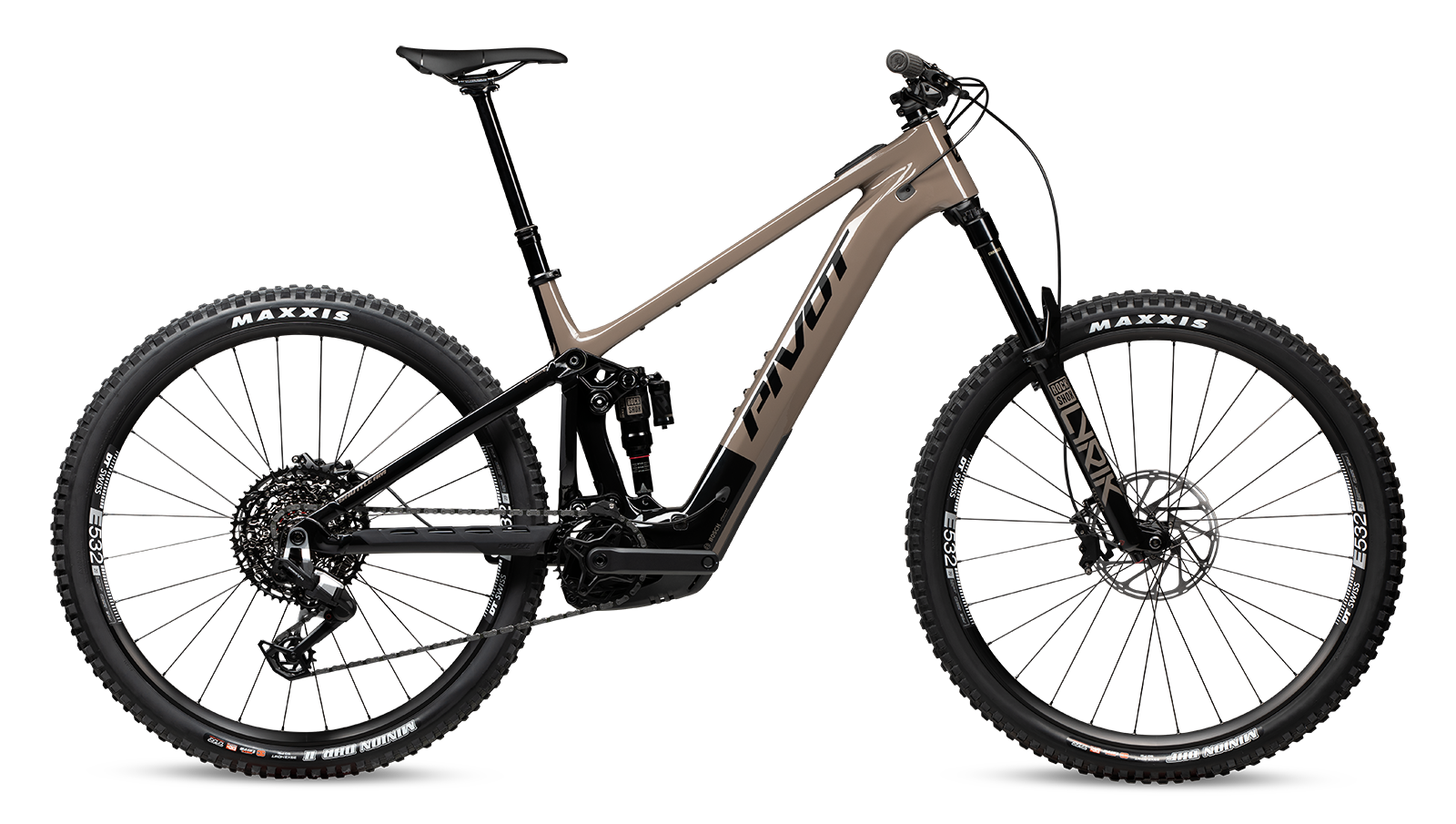

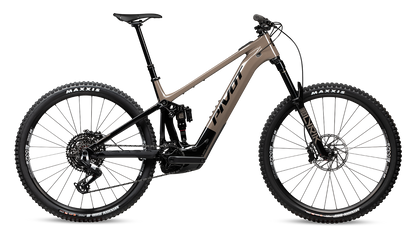

Pivot Shuttle AM Shuttle AM Ride Eagle 70/90 29" Alloy wheels

Pivot Shuttle AM Shuttle AM Ride Eagle 70/90 29" Alloy wheels

$8,499.00 USD
$8,499.00 USD
Sale Sold out
Shipping calculated at checkout.
Title
-Store pick up only, please call with any questions-
Product Details

  • Ultra-Light hollow core carbon frame
  • Featuring Bosch's Gen 5 Performance Line CX (Ride) and CX Race motors (Pro & Team)
  • Long-range 800Wh battery on all build levels

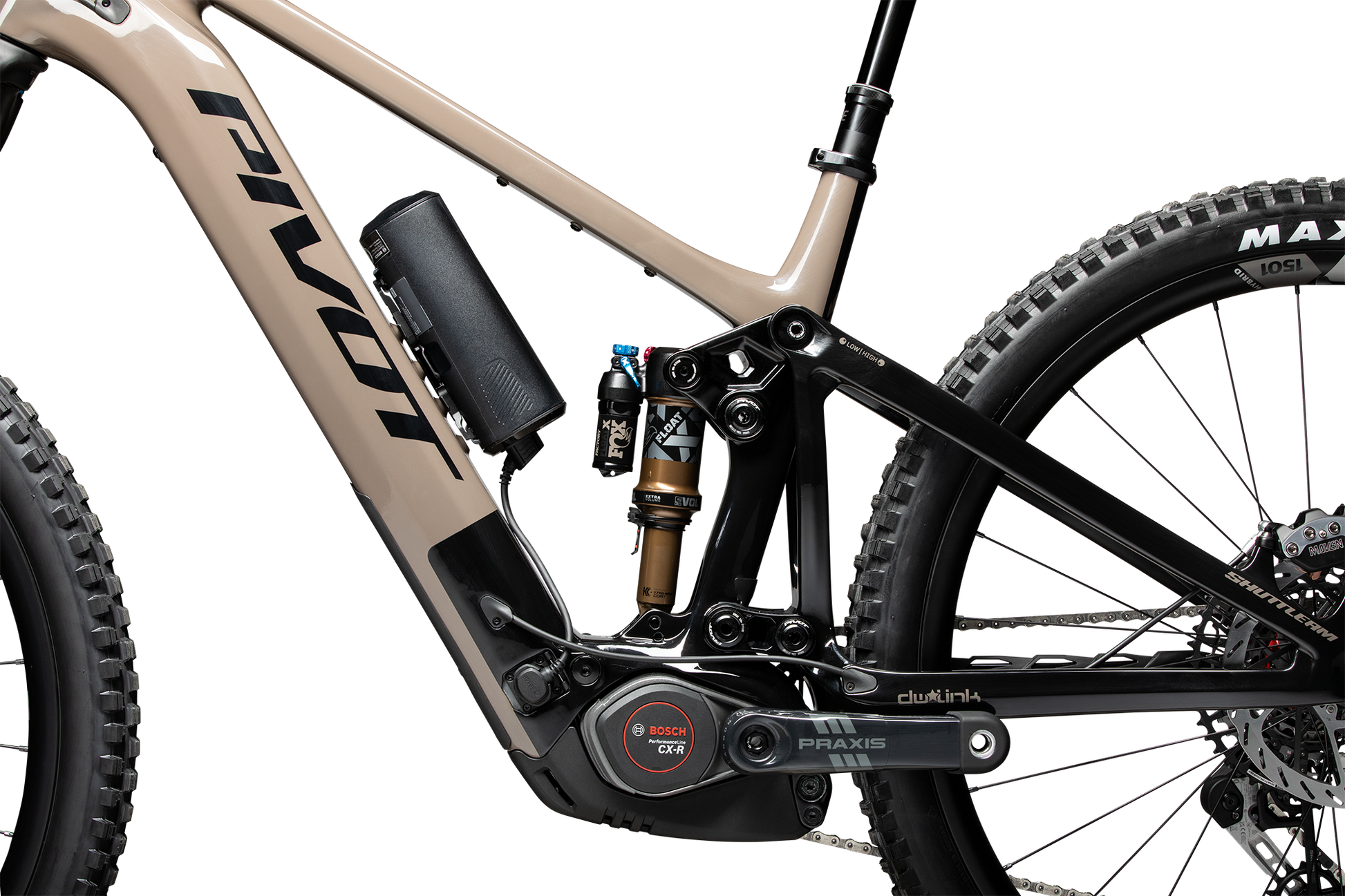

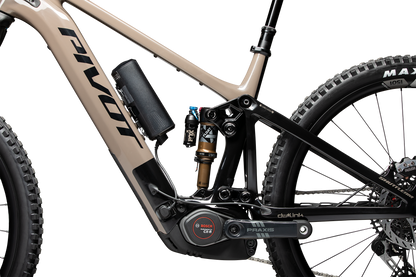

  • Bosch 250wh PowerMore range extender compatible
  • Kiox 400C display (Pro & Team)
  • Wheel mounted speed sensor
  • Wireless Bosch remote
  • 160mm fork
  • Flip chip upper link mount
  • Mixed wheel compatible
  • Pivot Dock Tool system compatible
  • Water bottle clearance on all sizes
  • 150mm of progressive rear travel
  • Injection molded rubberized frame protection
  • Full internal routing with Pivot cable port system



Specs from Vital MTB:

Intended Use
Enduro / All-Mountain
Rider
Unisex
Sizes and Geometry
SM (Low, High)

MD (Low, High)

LG (Low, High)

XL (Low, High)

View Full Geometry
Wheel Size
29"
E-Bike Class
Class 1: Pedal Assist (Pedelecs)
Motor
Bosch Performance CX Gen 5, 100 Nm max torque, 750 W max power
Battery
Integrated
Option: Bosch PowerMore 250 Wh range extender
Battery Capacity
800 Wh
Display/Remote
Bosch System Controller display, top tube integrated; Bosch Mini Remote
Modes
Turbo, eMTB+, eMTB, Tour+, Walk Assist
Max Speed with Assist
USA/Canada/New Zealand: 20 mph (32.2 km/h)
Other: 15.5 mph (25 km/h)
Frame Material
Carbon Fiber
Frame Material Details
Hollow Core carbon front and rear triangles; injection molded chainstay, seatstay, and lower down tube protection
Rear Travel
150mm
Rear Shock
RockShox Super Deluxe Select, trunnion mount
Fork
RockShox Lyrik Select+, 35mm stanchions, 44mm offset
Fork Travel
160mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
Pivot Precision, sealed cartridge bearings, ZS49 upper, ZS56 lower
Handlebar
Phoenix Race Low Rise Carbon
Stem
Phoenix Team Enduro/Trail
Grips
Phoenix Factory, lock-on
Brakes
SRAM DB8, 4-piston
Rotors: SRAM CenterLine, CENTER LOCK, 200mm
Brake Levers
SRAM DB8 Stealth, tooled reach adjust
Drivetrain
1x
Shifters
SRAM Eagle 90 Transmission, 12-speed
Front Derailleur
None
Rear Derailleur
SRAM Eagle 90 Transmission, 12-speed
Chainguide
Upper slider
Cranks
FSA CK-220/IS Armset Alloy, 160mm length
Chainrings
34 tooth
Pedals
None
Chain
SRAM Eagle 70 Transmission Flattop, 12-speed
Cassette
SRAM Eagle Transmission XS-1270, 12-speed, 10-52 tooth
Rims
DT Swiss E 532 Alloy, 30mm inner width
Hubs
DT Swiss wheelset, 15mm x 110mm (Boost) front, 12mm x 157mm (SuperBoost+) with HG driver
Spokes
DT Swiss wheelset
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra compound, EXO+ casing, TR, 29" x 2.5” WT
Rear: Maxxis Minion DHR II, 3C MaxxTerra compound, EXO+ casing, TR, 29" x 2.4” WT
Saddle
Pivot Ride E-Bike
Seatpost
JD YSP23GLS dropper, adjustable travel
Drop: 130-150mm (SM), 150-170mm (MD), 180-200mm (LG/XL)
Seatpost Diameter
31.6mm
Seatpost Clamp
Single bolt, 36.4mm
Rear Dropout / Hub Dimensions
12mm x 157mm (SuperBoost+)
Max. Tire Size
29" x 2.5" or 27.5" x 2.6"
Bottle Cage Mounts
One inside front triangle, plus accessory mounts under top tube (compatible with Pivot Dock Tool System)
Colors
Badlands Brown, Blue Dark Sky
Warranty
10 years frame; 5 years Pivot/Phoenix components; 1 year paint/finish/bearings
Weight

Miscellaneous
• dw-link rear suspension design
• Geometry adjustable via two-position flip chip in upper linkage
• Compatible with mixed ("Mullet") setups (29" front, 27.5" rear) with flip chip in High position
• Cable Port System internal cable routing, with new port design
• SRAM UDH (Universal Derailleur Hanger)
• New charging port design for better protection from the elements
• Power settings customizable via Bosch eBike Flow Mobile App
• Photos may show alternate builds
Price
$8,499.00
