Pivot Trailcat LT XT Di2
Pivot Trailcat LT XT Di2
Regular price
$8,599.00 USD
Regular price
Sale price
$8,599.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

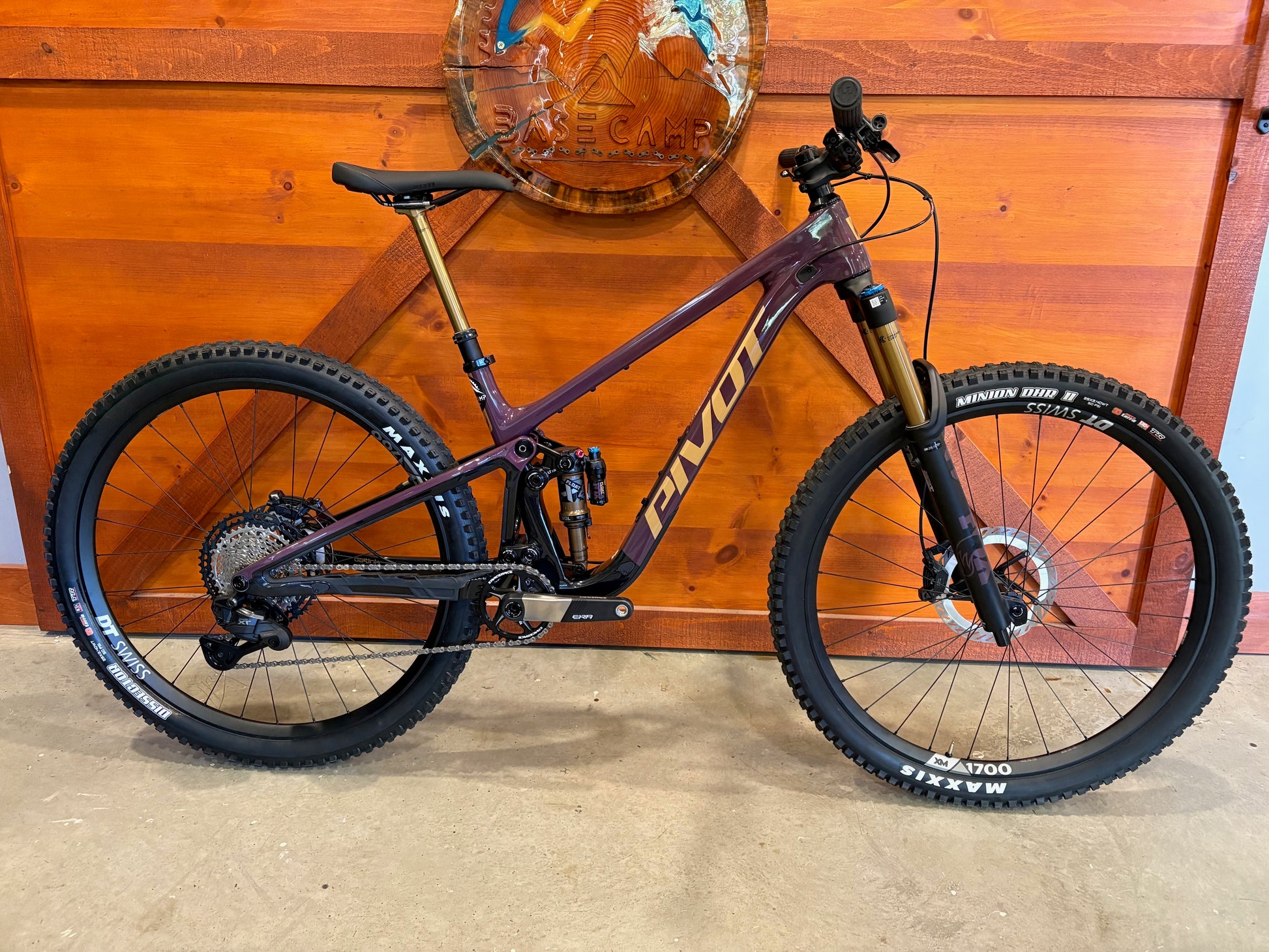

We have a brand new Pivot Trailcat LT XT Di2 in a Small, Medium, and Large- the Small is Green, Medium and Large are Purple. Please Reach out with any questions.
Specs from Pivot's Website:
Wheel Size
29"
Frame Material
Carbon Fiber
Frame Material Details
Hollow Core carbon fiber front and rear triangles; molded seatstay, chainstay, and lower down tube protection
Rear Travel
135mm

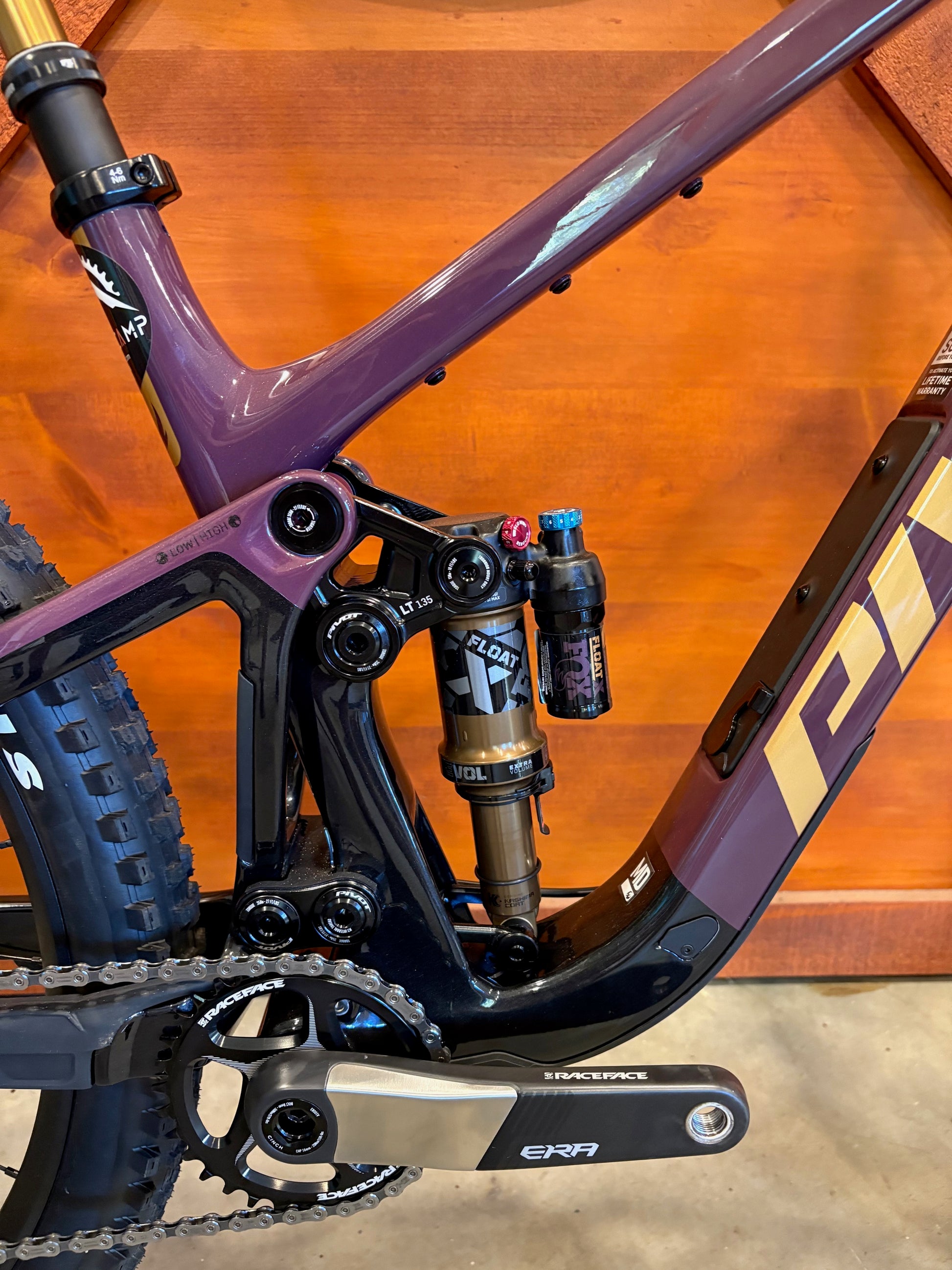

Rear Shock
FOX FLOAT X Factory, Kashima coating, trunnion mount, 185mm length x 55mm stroke

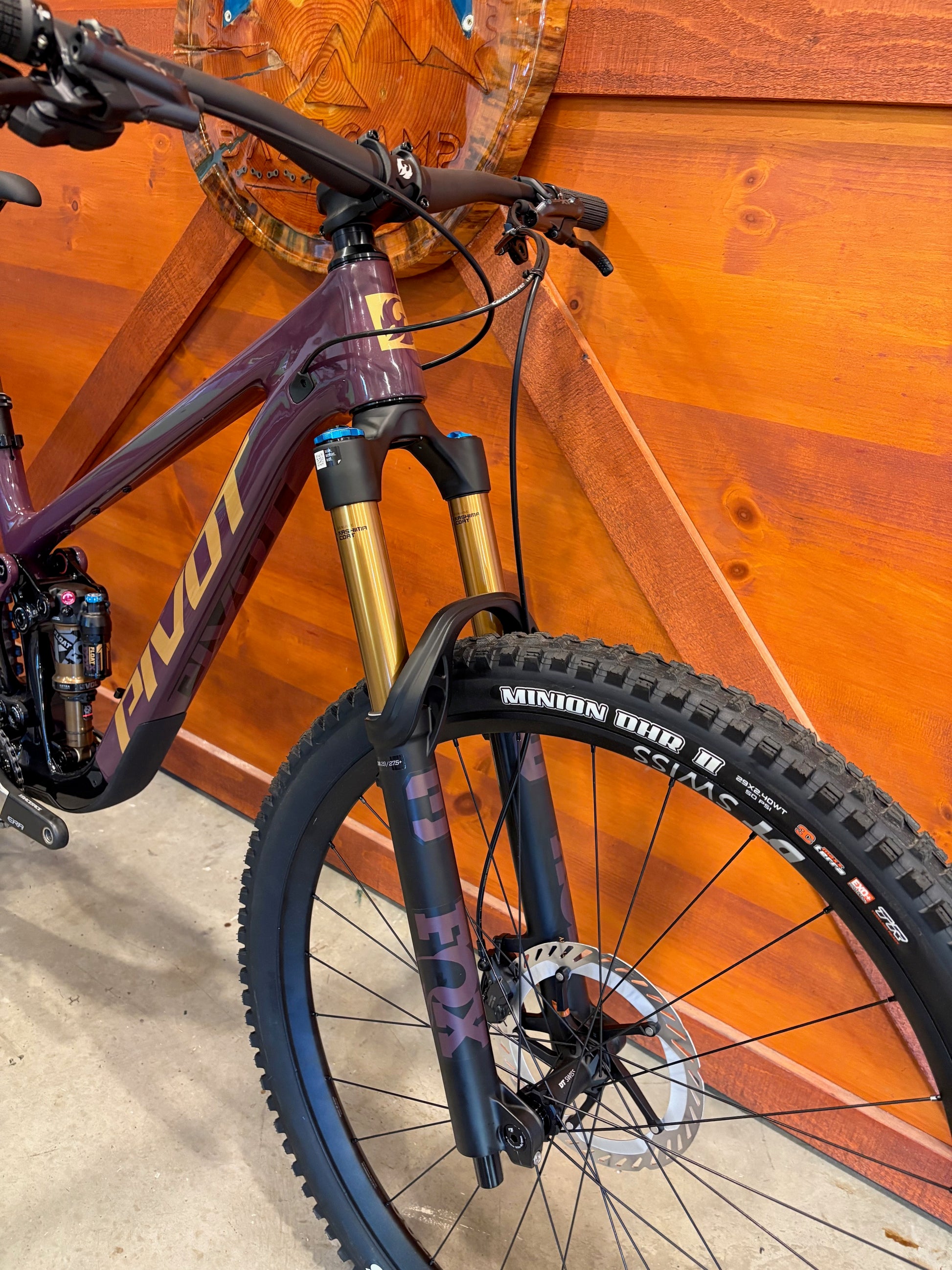

Fork
FOX FLOAT 36 Factory, GRIP X2 damper, Kashima coating, 44mm offset
Fork Travel
150mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
Pivot Precision, sealed cartridge bearings
Stem
Phoenix Team Enduro/Trail
Length: 35mm (XS), 45mm (SM), 55mm (MD-XL)
Length: 35mm (XS), 45mm (SM), 55mm (MD-XL)
Grips
Phoenix Factory, lock-on
Brakes
Shimano Deore XT M8220, 4-piston
Rotors: Shimano Deore XT, CENTER LOCK, 203mm front, 180mm rear
Rotors: Shimano Deore XT, CENTER LOCK, 203mm front, 180mm rear

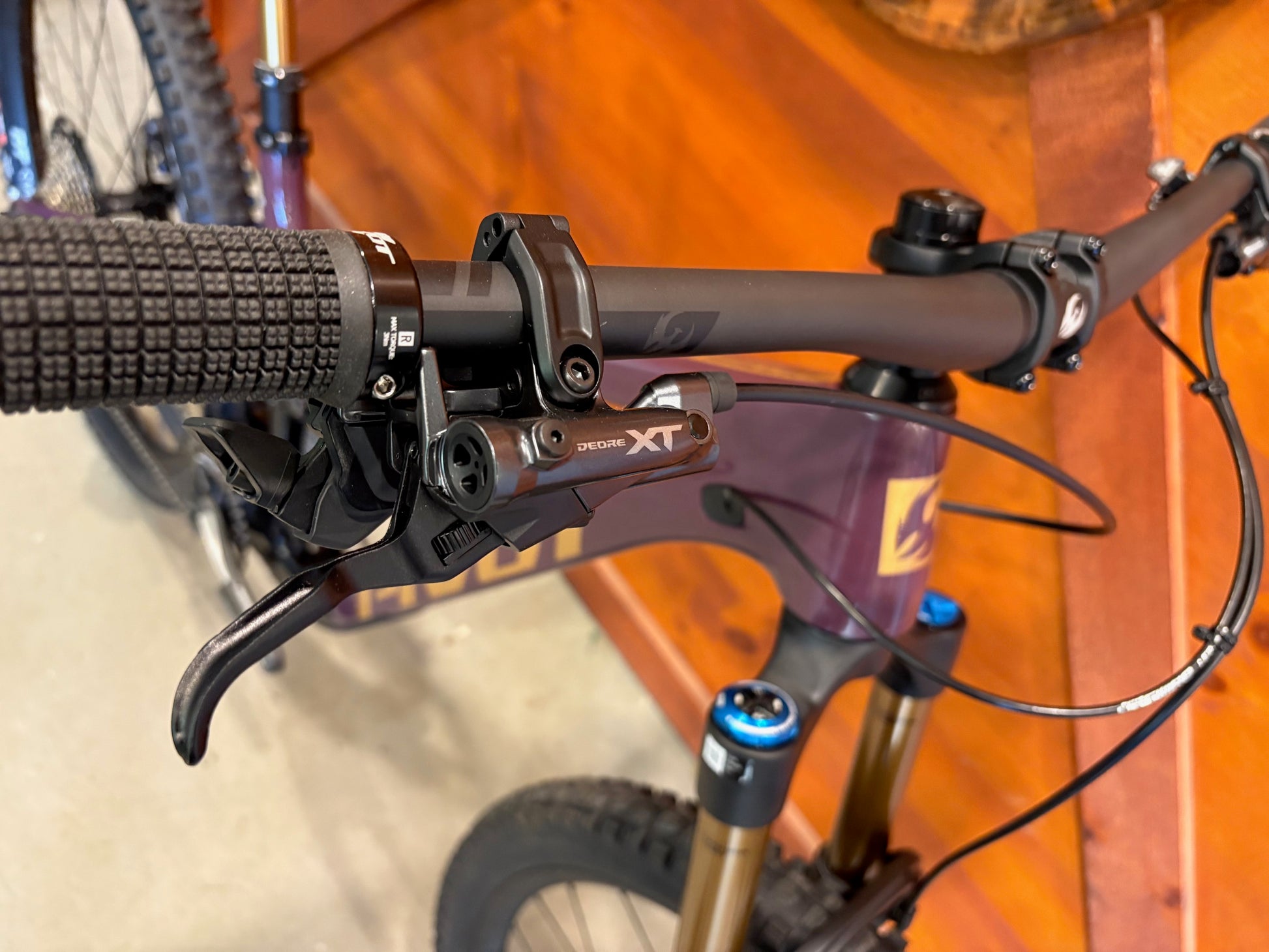

Brake Levers
Shimano Deore XT
Drivetrain
1x

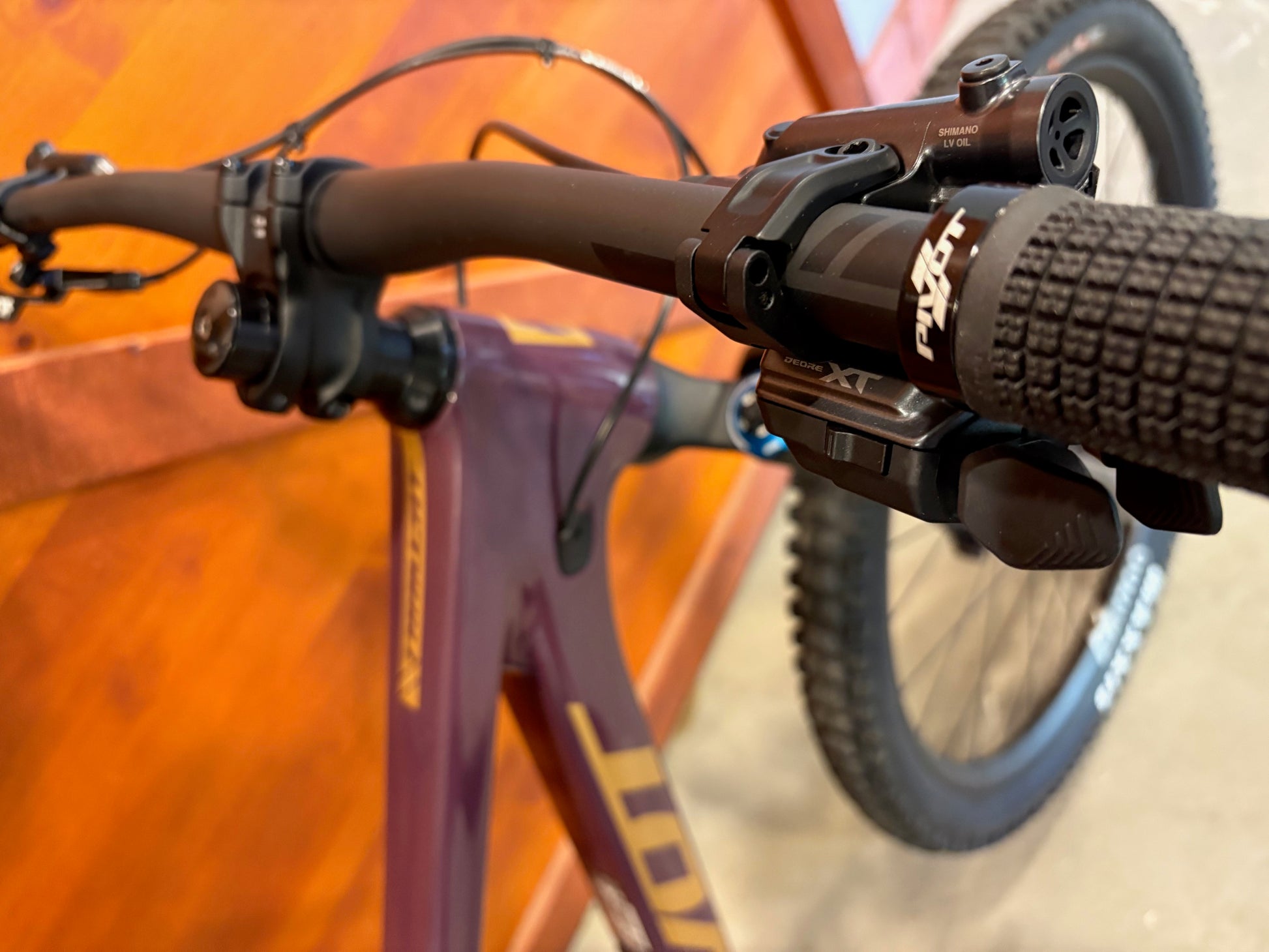

Shifters
Shimano Deore XT M8250 Di2, 12-speed, electronic wireless, I-SPEC EV mounting bracket
Front Derailleur
None

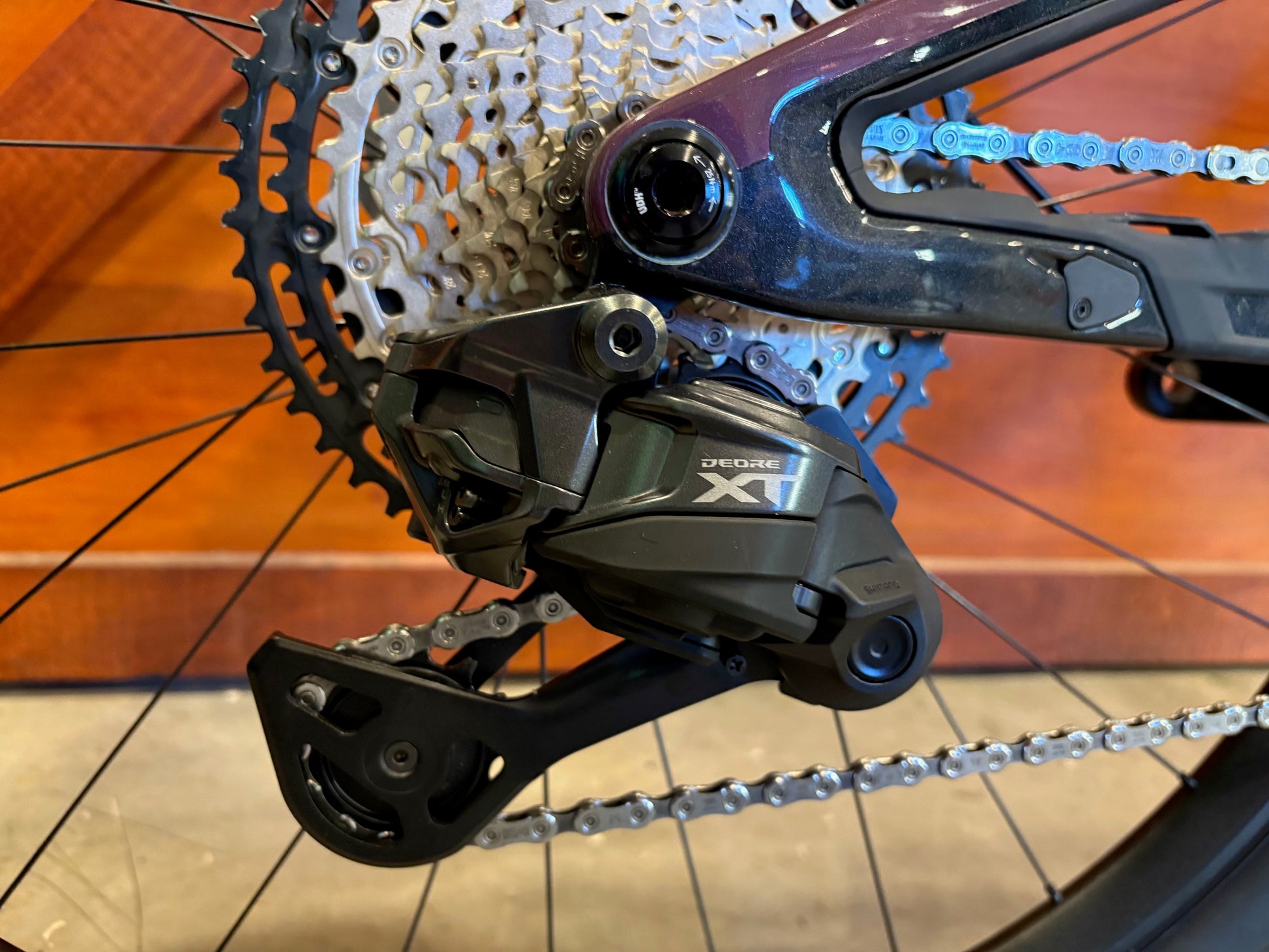

Rear Derailleur
Shimano Deore XT M8250 Di2, 12-speed, electronic wireless, SGS cage
ISCG Tabs
ISCG05
Chainguide
None
Cranks
Race Face Aeffect R Alloy
Chainrings
Race Face Aeffect R, 32 tooth
Bottom Bracket
92mm PressFit
Pedals
None
Chain
Shimano Deore XT M8100, 12-speed
Cassette
Shimano Deore XT M8200, 12-speed, 10-51 tooth
Rims
DT Swiss XM 1700 Alloy, 30mm width
Option: Reynolds Blacklabel 329 Trail Pro Carbon, 30mm-width front, 28mm-width rear
Option: Reynolds Blacklabel 329 Trail Pro Carbon, 30mm-width front, 28mm-width rear
Hubs
DT Swiss 350, 15mm x 110mm (Boost) front, 12mm x 157mm (SuperBoost+) rear with 36-tooth Star Ratchet freehub and MICRO SPLINE driver
Option (with Reynolds Blacklabel Carbon rims): Industry Nine Hydra
Option (with Reynolds Blacklabel Carbon rims): Industry Nine Hydra
Spokes
DT Swiss wheelset
Tires
Front: Maxxis Minion DHR II, 3C MaxxTerra compound, EXO+ casing, TR, 29" x 2.4" WT
Rear: Maxxis Dissector, 3C MaxxTerra compound, EXO casing, TR, 29" x 2.4" WT
Rear: Maxxis Dissector, 3C MaxxTerra compound, EXO casing, TR, 29" x 2.4" WT
Saddle
WTB Volt Pro Phoenix, medium width
Seatpost
FOX Transfer Factory dropper, adjustable travel, Kashima coating
Drop: 95-120mm (XS), 125-150mm (SM), 155-180mm (MD), 185-210mm (LG/XL)
Drop: 95-120mm (XS), 125-150mm (SM), 155-180mm (MD), 185-210mm (LG/XL)
Seatpost Diameter
31.6mm
Seatpost Clamp
Single bolt, 36.4mm
Rear Dropout / Hub Dimensions
12mm x 157mm (SuperBoost+)
Max. Tire Size
29" x 2.6" or 27.5" x 2.8"
Bottle Cage Mounts
One inside front triangle, one under down tube, plus accessory mounts under top tube; compatible with Pivot Dock Tool System
Colors
Green Meadow Mist, Doctor Purple
Warranty
Lifetime frame
