Pivot Firebird Pro XO Axs
Pivot Firebird Pro XO Axs
Regular price
$8,999.00 USD
Regular price
Sale price
$8,999.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
-Will not ship, Local Pick Up Only, Please Call for details-

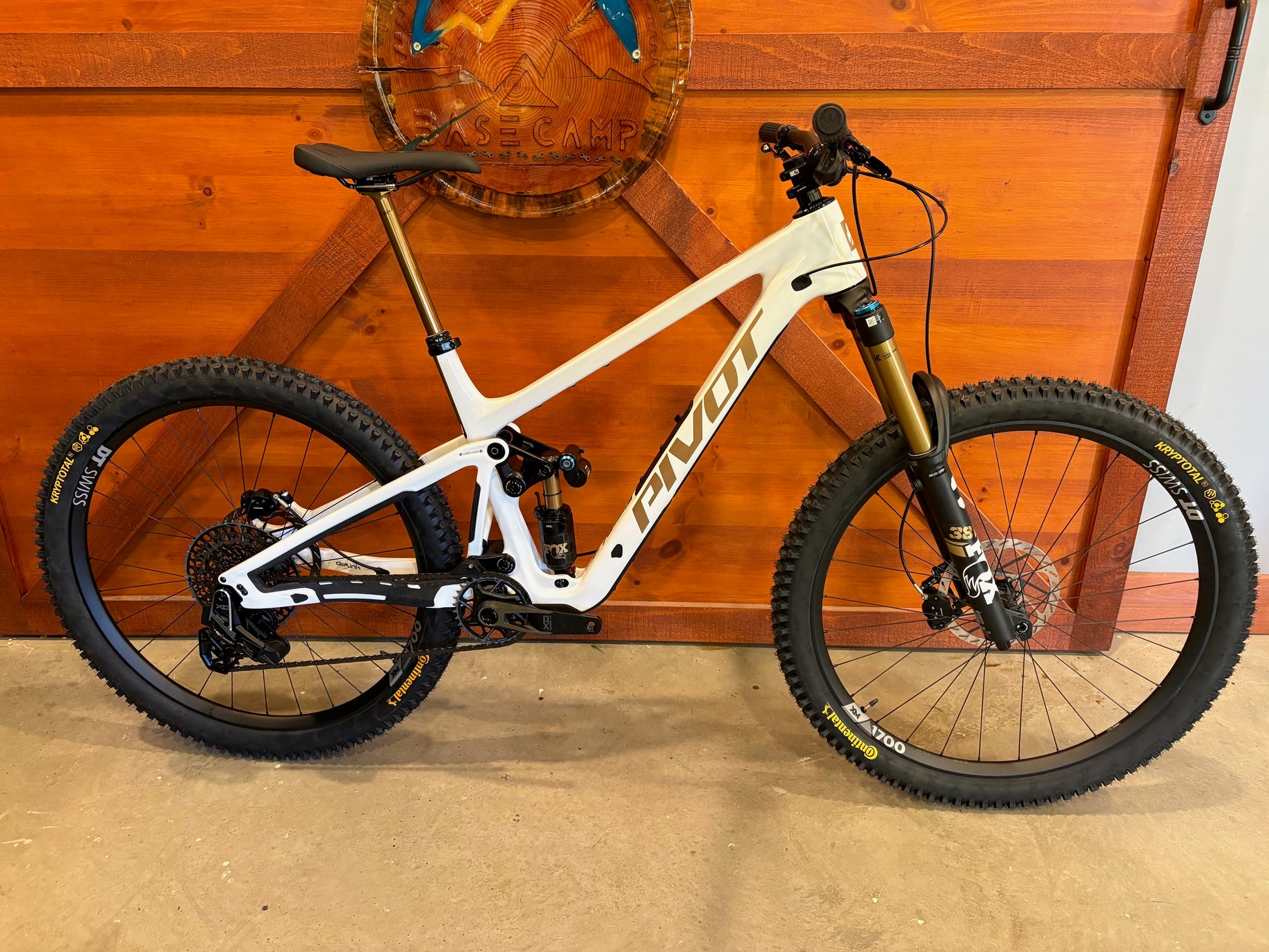

We have a brand new Pivot Firebird Pro XO Axs 29" in a Large and Medium ready to rock. Please reach out with any questions.
Specs from Pivot's Website:
Frame Material
Carbon Fiber
Frame Material Details
Hollow Core carbon fiber front and rear triangles, size-specific Proprietary Ride Tuning carbon layups and stiffness; molded seatstay, chainstay, lower down tube, and shuttle guard protection
Rear Travel
165mm
Rear Shock

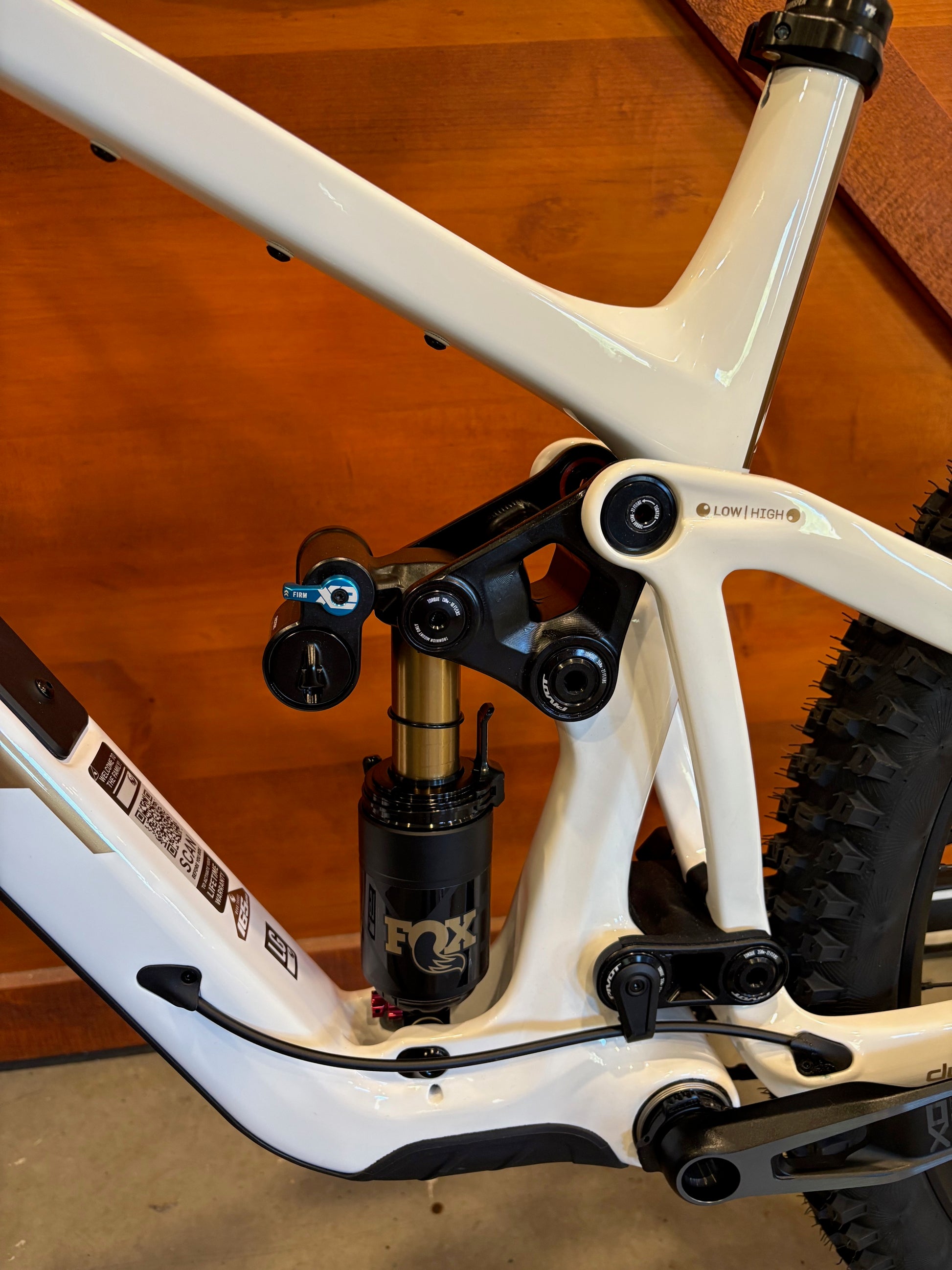

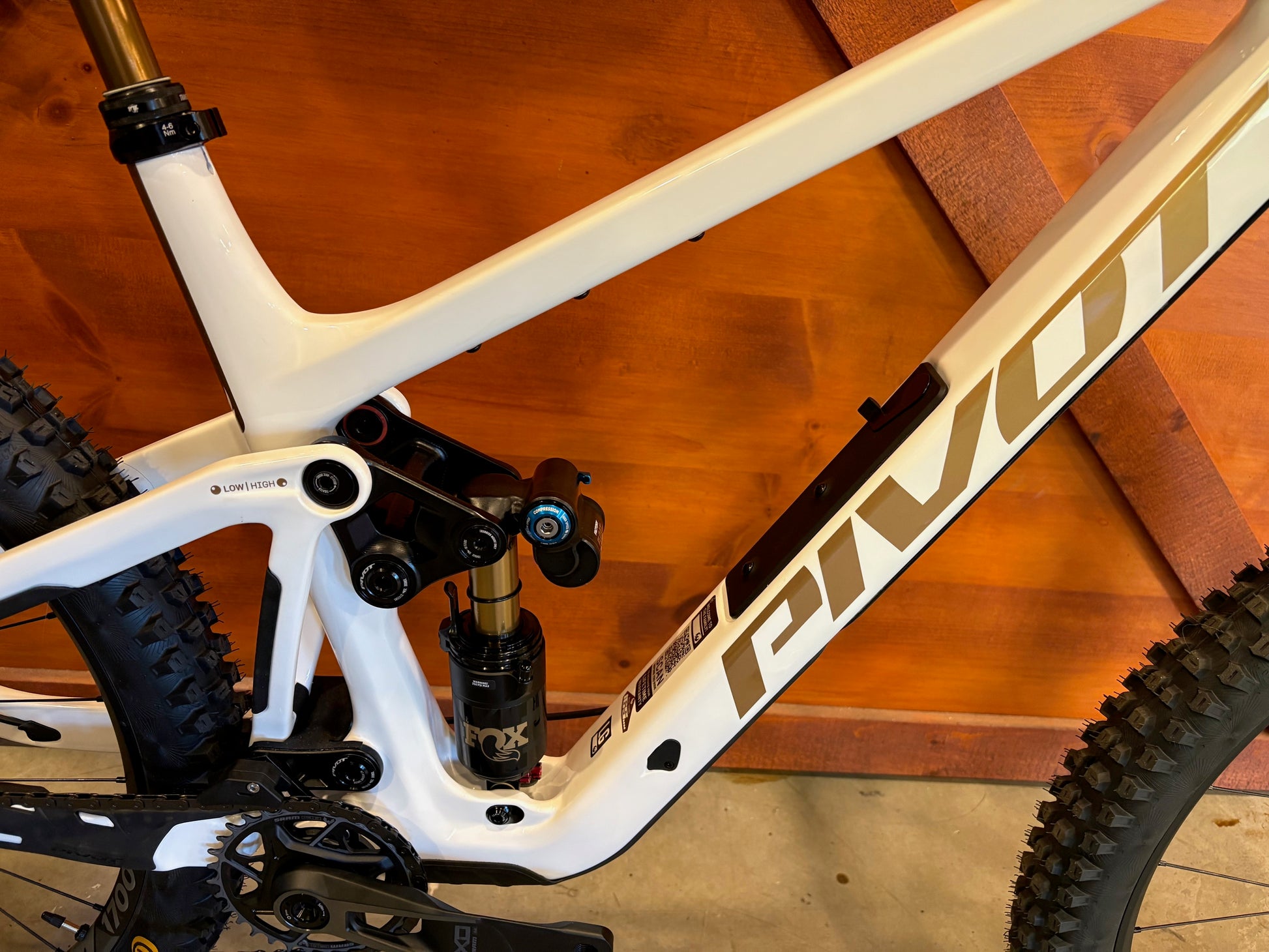

FOX FLOAT X2 Factory, Kashima coating, trunnion mount, 205mm length x 65mm stroke
Fork

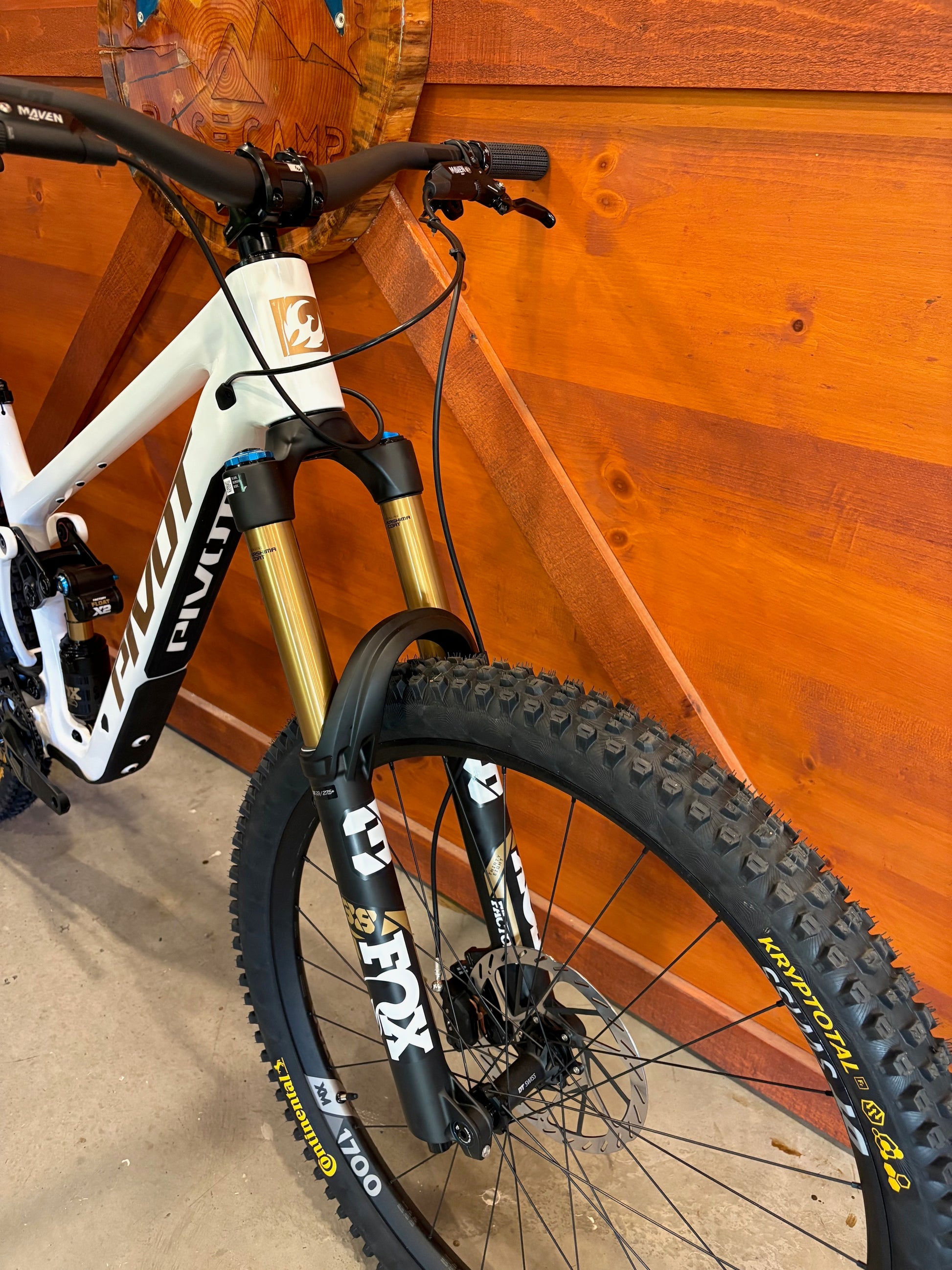

FOX FLOAT 38 Factory, GRIP X2 damper, Kashima coating, 44mm offset
Fork Travel
170mm
Head Tube Diameter
Straight, 1.5"
Headset
Pivot Precision, sealed cartridge bearings, ZS56 upper/lower
Stem
Phoenix Team Enduro V2, 7° rise
Length: 32mm (XS), 40mm (SM-LG), 50mm (XL)
Length: 32mm (XS), 40mm (SM-LG), 50mm (XL)
Grips
Phoenix Factory, lock-on
Brakes

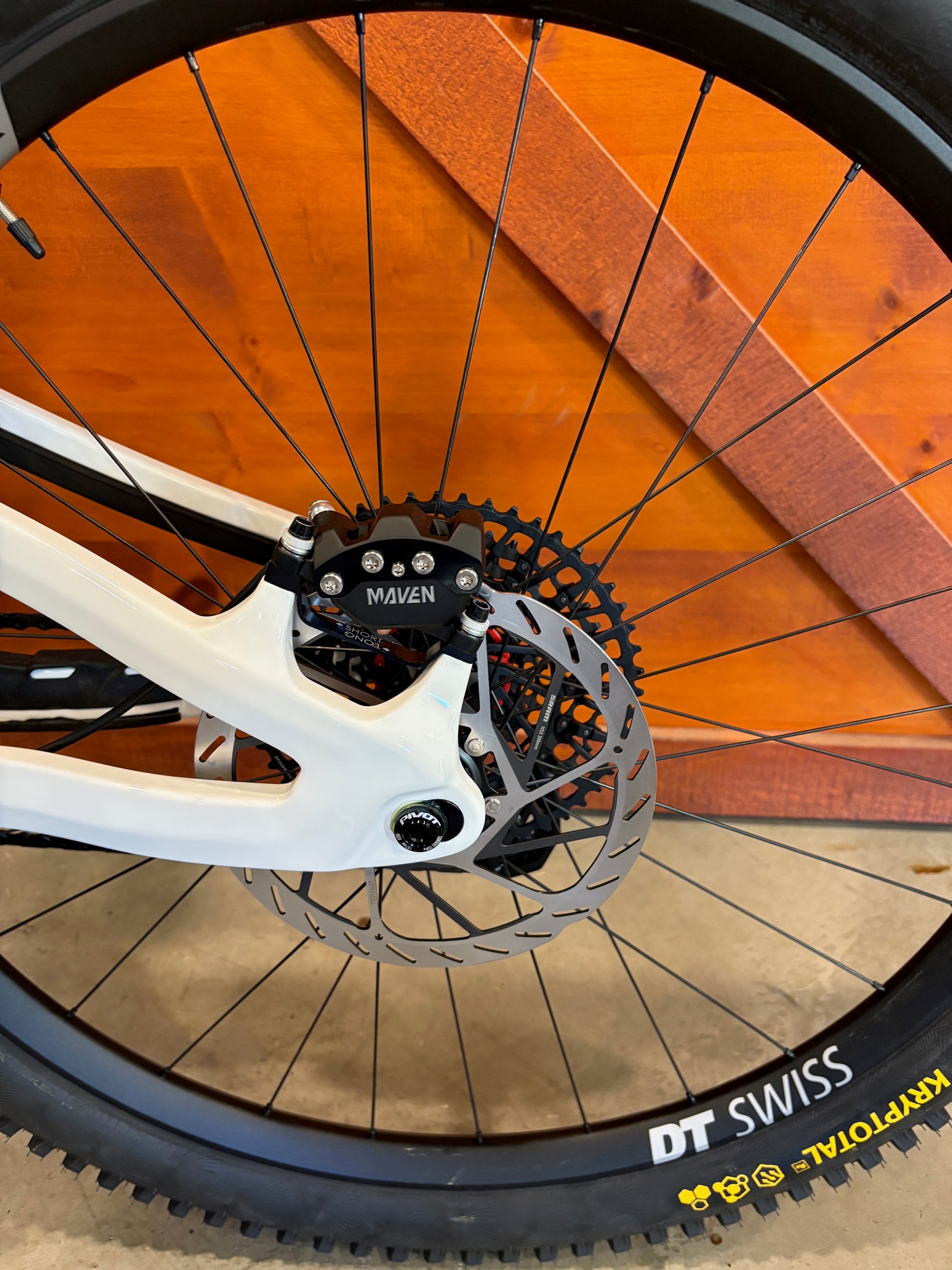

SRAM Maven Silver, 4-piston, SRAM HS2 200mm CENTER LOCK rotors
Brake Levers

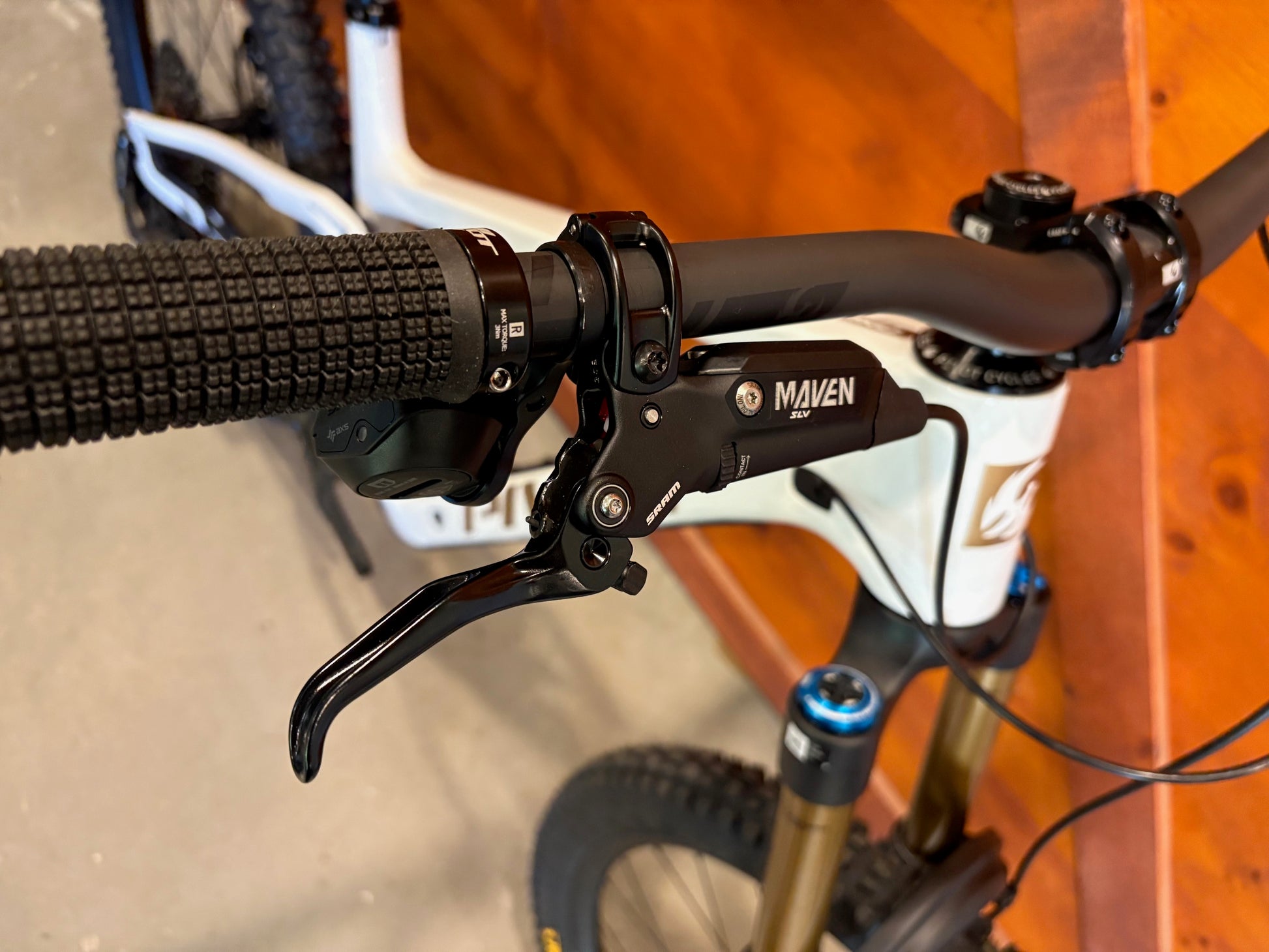

SRAM Maven Silver Stealth, tool-free reach adjust and contact point adjust
Drivetrain
1x
Shifters
SRAM Eagle Pod Controller, 12-speed, AXS electronic wireless
Front Derailleur
None
Rear Derailleur

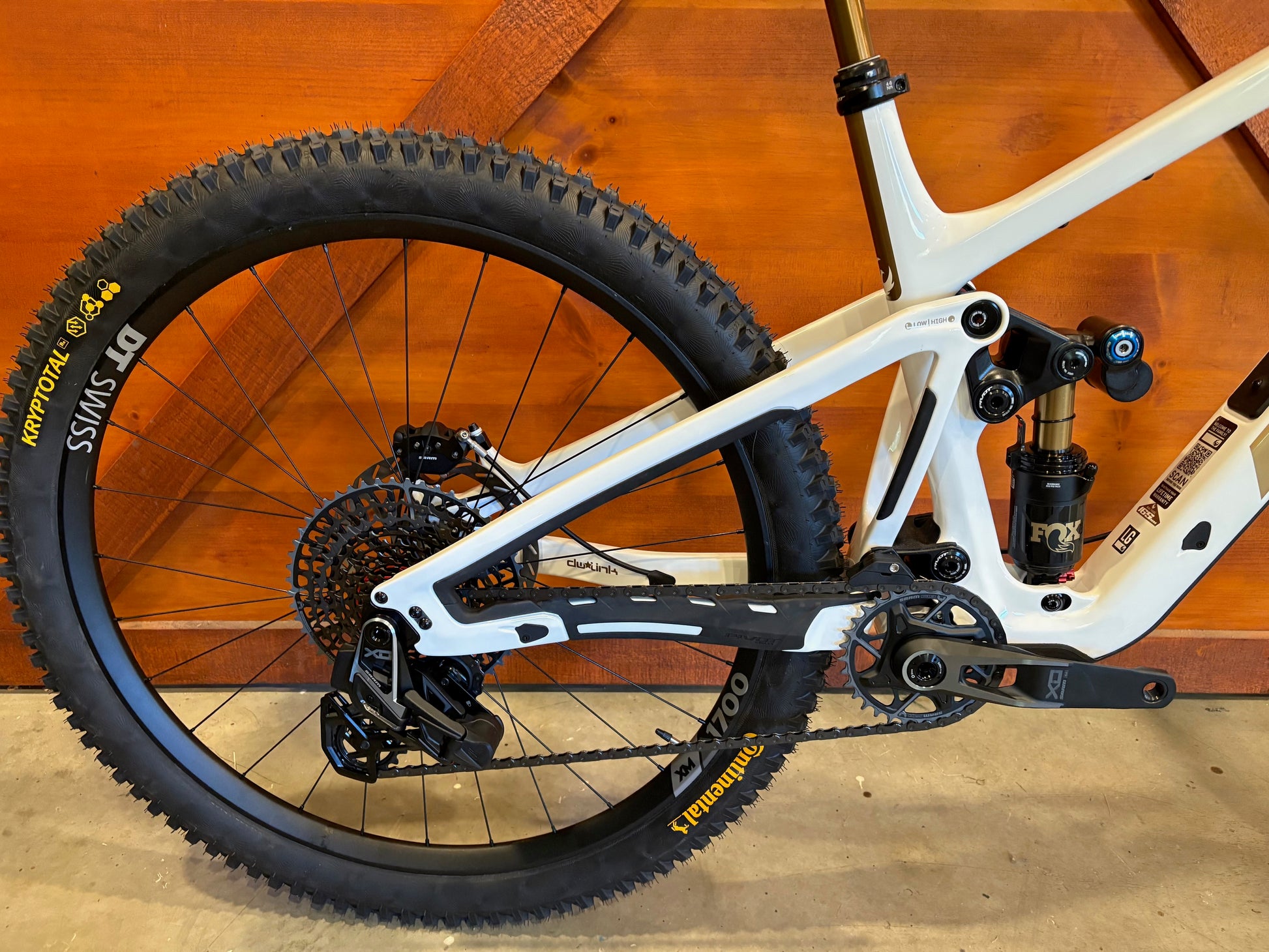

SRAM X0 Eagle Transmission, 12-speed, AXS electronic wireless
ISCG Tabs
ISCG05
Chainguide
Upper slider
Cranks
SRAM X0 Eagle Transmission Alloy DUB
Length: 165mm (XS/SM), 170mm (MD-XL)
Length: 165mm (XS/SM), 170mm (MD-XL)
Chainrings
SRAM X0 Eagle Transmission, 32 tooth
Bottom Bracket
SRAM DUB, 92mm PressFit
Pedals
None
Chain
SRAM X0 Eagle Transmission Flattop, 12-speed
Cassette
SRAM X0 Eagle Transmission XS-1295, 12-speed, 10-52 tooth
Rims
DT Swiss XM 1700 Alloy, 30mm width
Option: Reynolds Blacklabel Enduro Pro Carbon, 32mm width
Option: Reynolds Blacklabel Enduro Pro Carbon, 32mm width
Hubs
DT Swiss 350, 15mm x 110mm (Boost) front, 12mm x 157mm (SuperBoost+) rear with 36 tooth Star Ratchet freehub and XD driver
Option (with Reynolds Blacklabel Enduro Pro Carbon rims): Industry Nine
Option (with Reynolds Blacklabel Enduro Pro Carbon rims): Industry Nine
Spokes
DT Swiss wheelset
Tires
Front: Continental Kyrptotal-F, Soft compound, Enduro casing, 29" x 2.4"
Rear: Continental Kyrptotal-R, Soft compound, Enduro casing, 2.4"
Rear: Continental Kyrptotal-R, Soft compound, Enduro casing, 2.4"
Saddle
XS/SM: WTB High Tail Trail Pro Phoenix
MD-XL: WTB Volt Pro Phoenix, medium width
MD-XL: WTB Volt Pro Phoenix, medium width
Seatpost
FOX Transfer Factory dropper, adjustable travel, Kashima coating
Drop: 125-150mm (XS), 155-180mm (SM), 185-210mm (MD/LG), 215-240mm (XL)
Drop: 125-150mm (XS), 155-180mm (SM), 185-210mm (MD/LG), 215-240mm (XL)
Seatpost Diameter
31.6mm
Seatpost Clamp
Single bolt, 36.4mm
Rear Dropout / Hub Dimensions
12mm x 157mm (SuperBoost+)
Max. Tire Size
2.6"
Bottle Cage Mounts
One inside front triangle, one under down tube, plus accessory mounts under top tube; compatible with Pivot Dock Tool System
