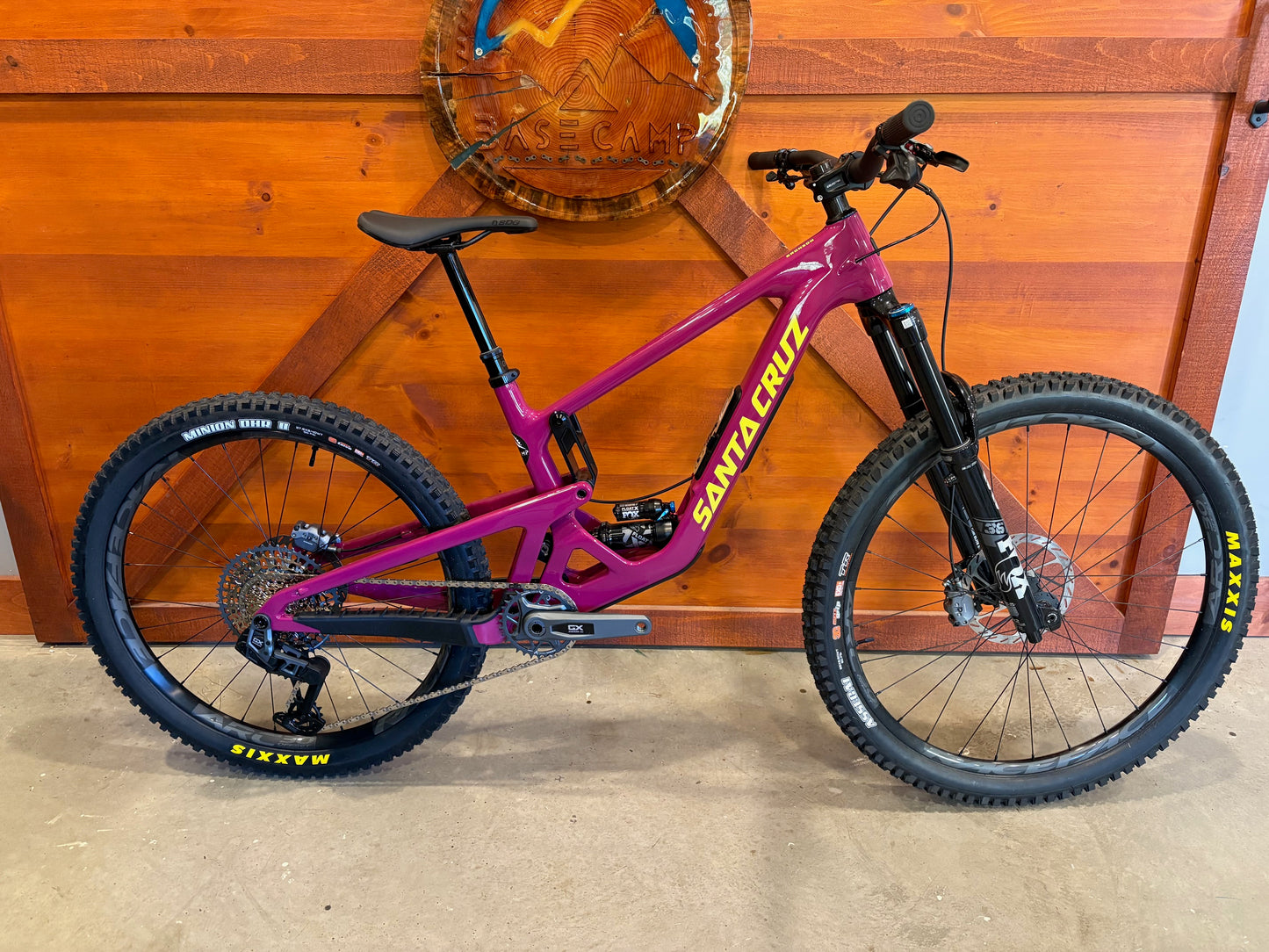

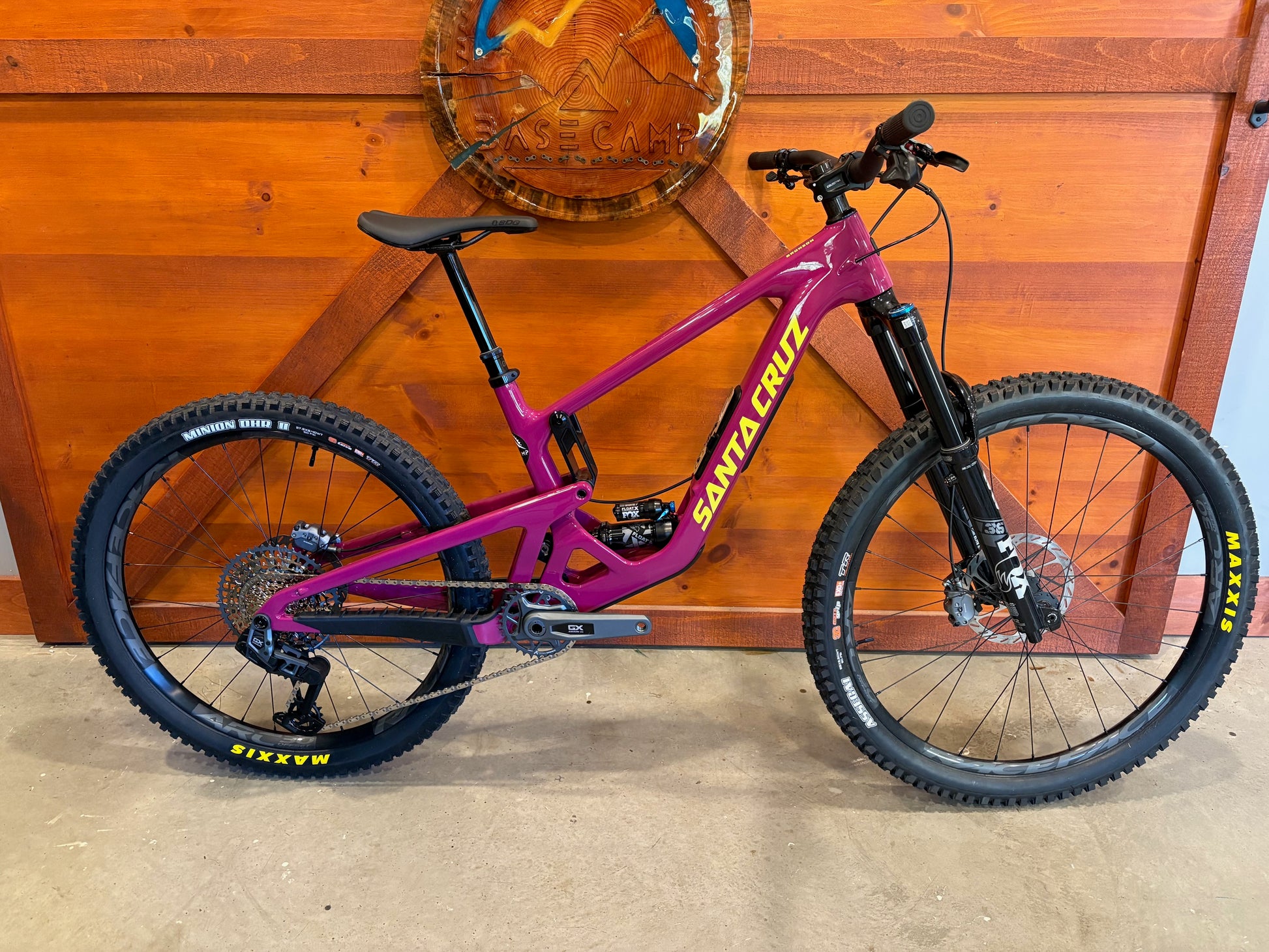

Santa Cruz Bronson 5 C MX KALIMTXO GX AXS

When you can only have one bike, and your mission is to ride that bike into oblivion, then this is the one. From manicured bike parks to blown out loamy berms, alpine lines to backyard trails, the Bronson is as at home in the air as it is in the dirt. For the rider with a Peter Pan disposition or who wants to get into a pan flat tabletop position, the Bronson encourages bad behavior.

Frame
Material
Carbon C
Travel
150mm
Weight
33.13 lbs / 15.03 kg
Wheel Size
MX
Suspension
Fork

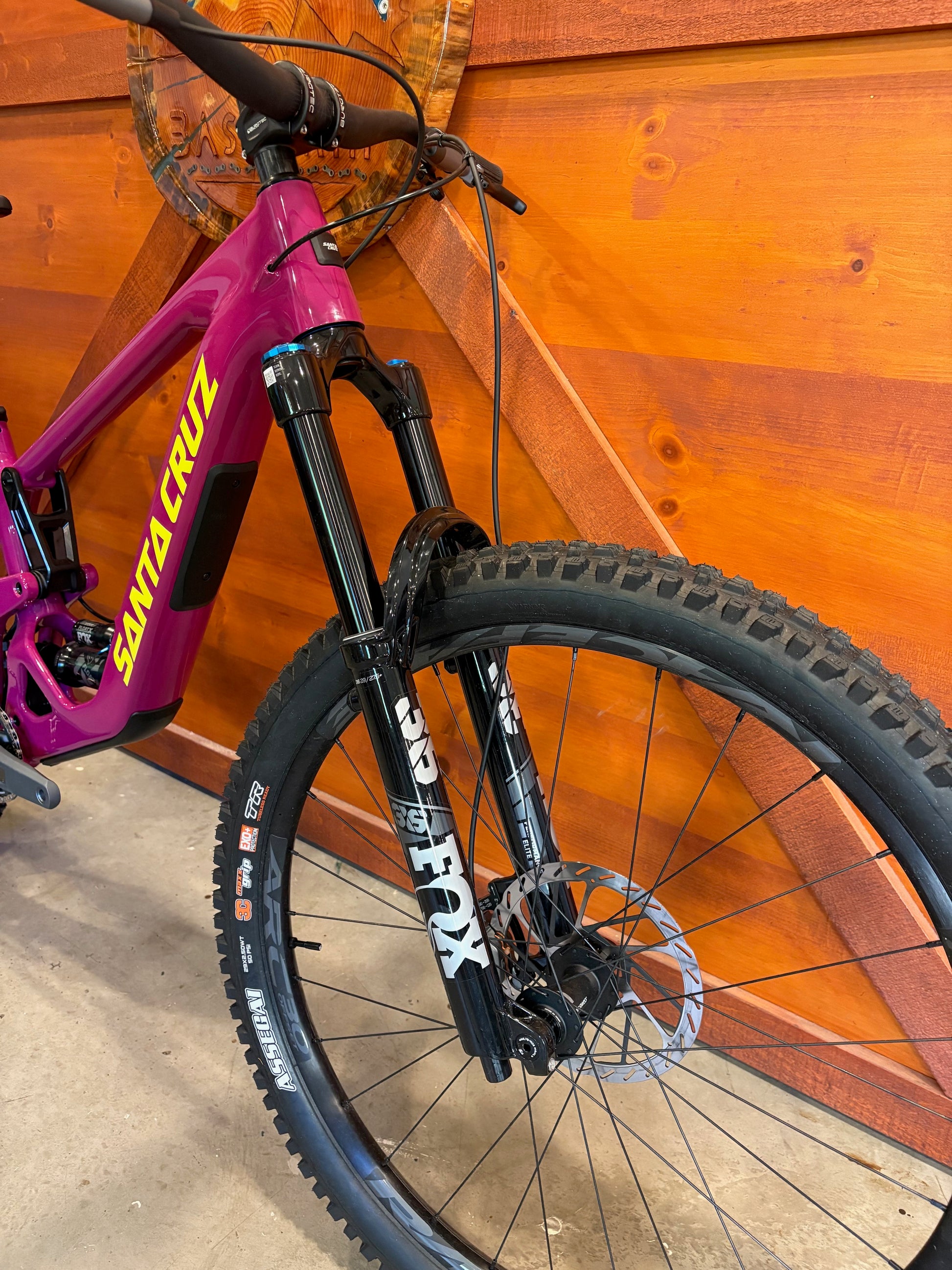

Fox 36 Float Performance Elite, Grip X2, 160mm
Shock

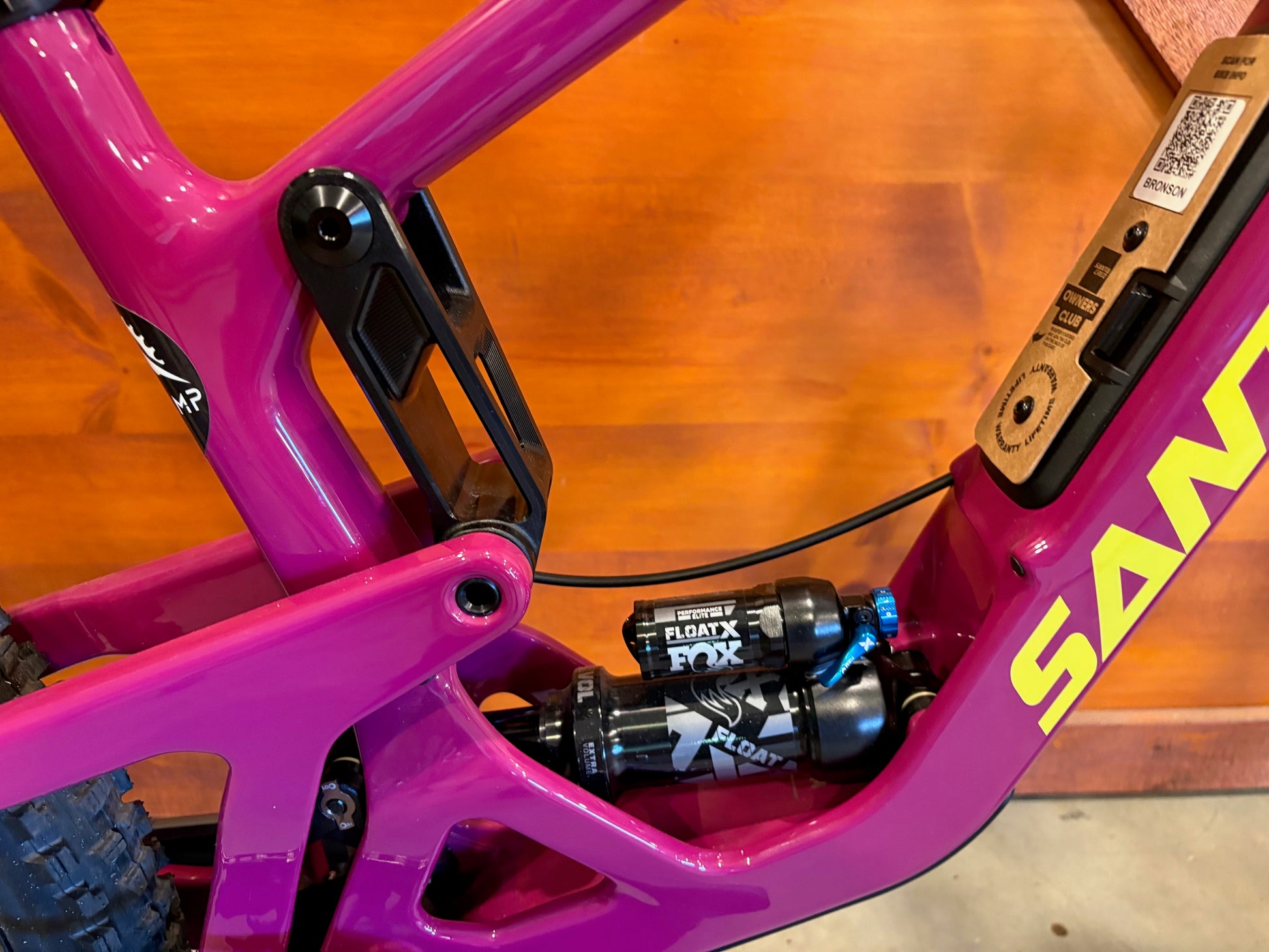

FOX Float X Performance Elite, 230x57.5

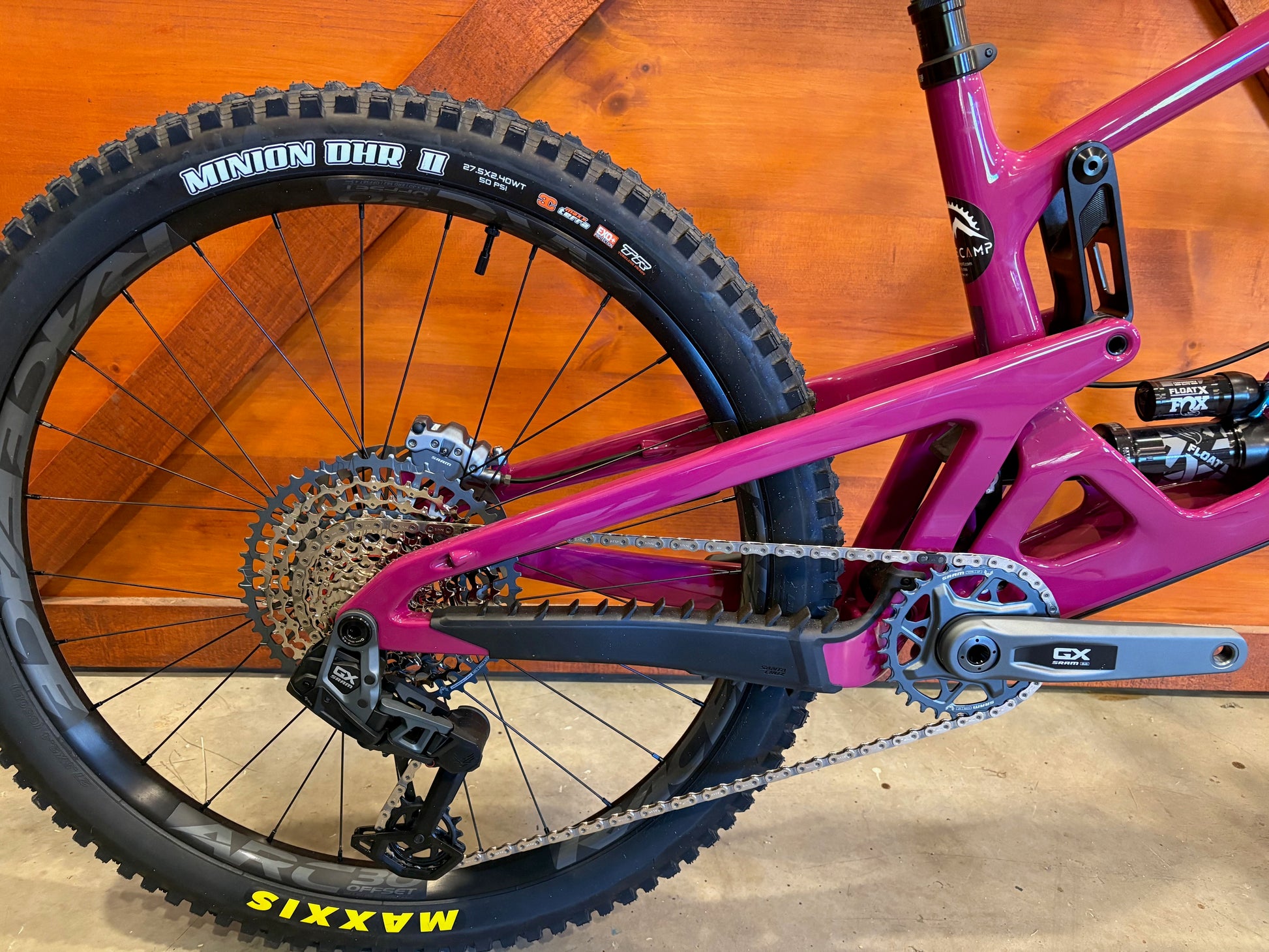

Drivetrain
Bottom Bracket
SRAM DUB 73mm MTB Wide BB
Cassette
SRAM GX Eagle T-Type, 10-52t
Chain
SRAM GX Eagle T-Type, Flattop, 12spd
Crankset
SRAM GX Eagle DUB T-Type Crankset, 32t
Rear Derailleur
SRAM GX Eagle AXS T-Type, 12spd
Right Shifter
SRAM AXS Pod Bridge
Brakes
Brakes

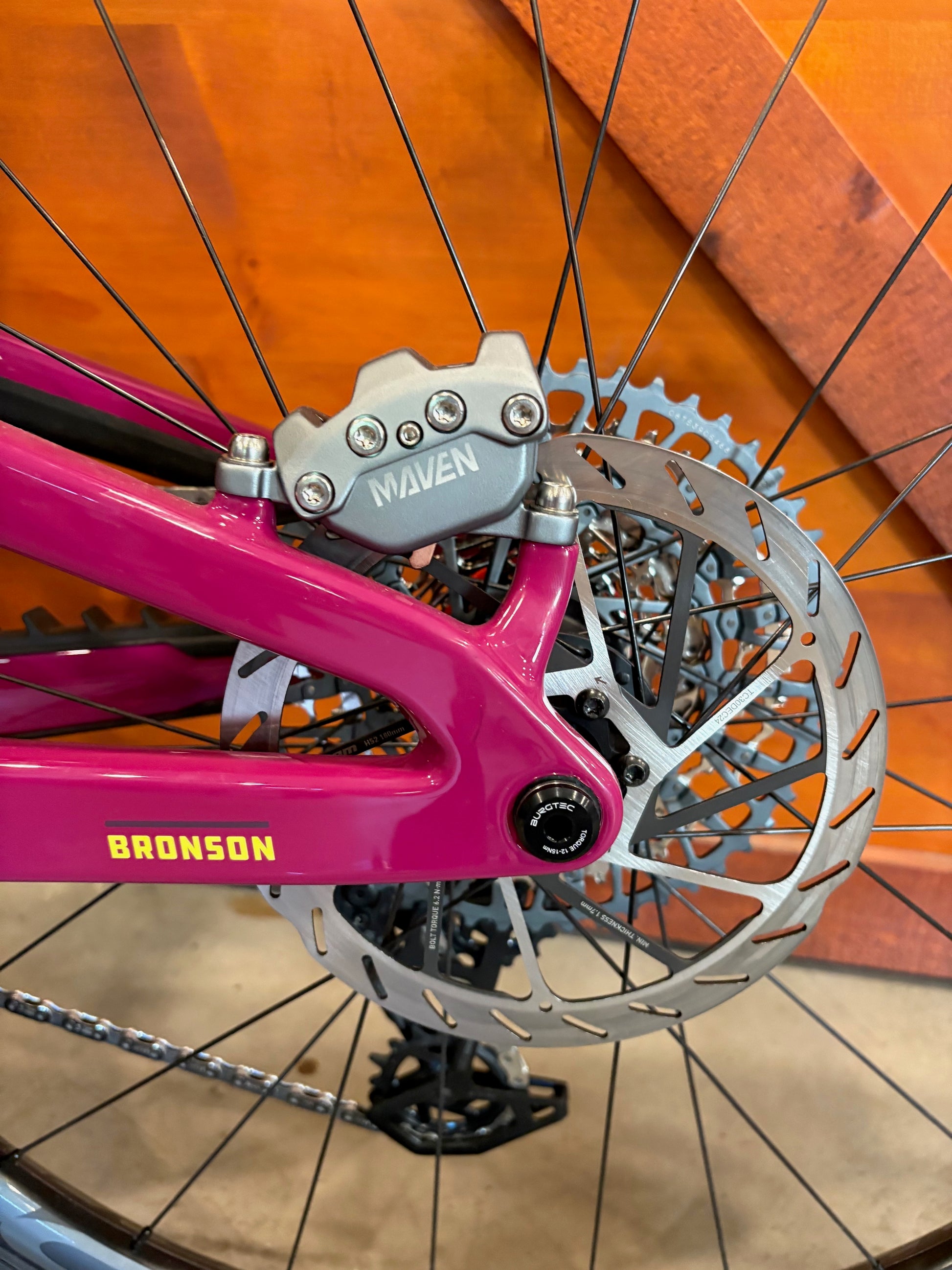

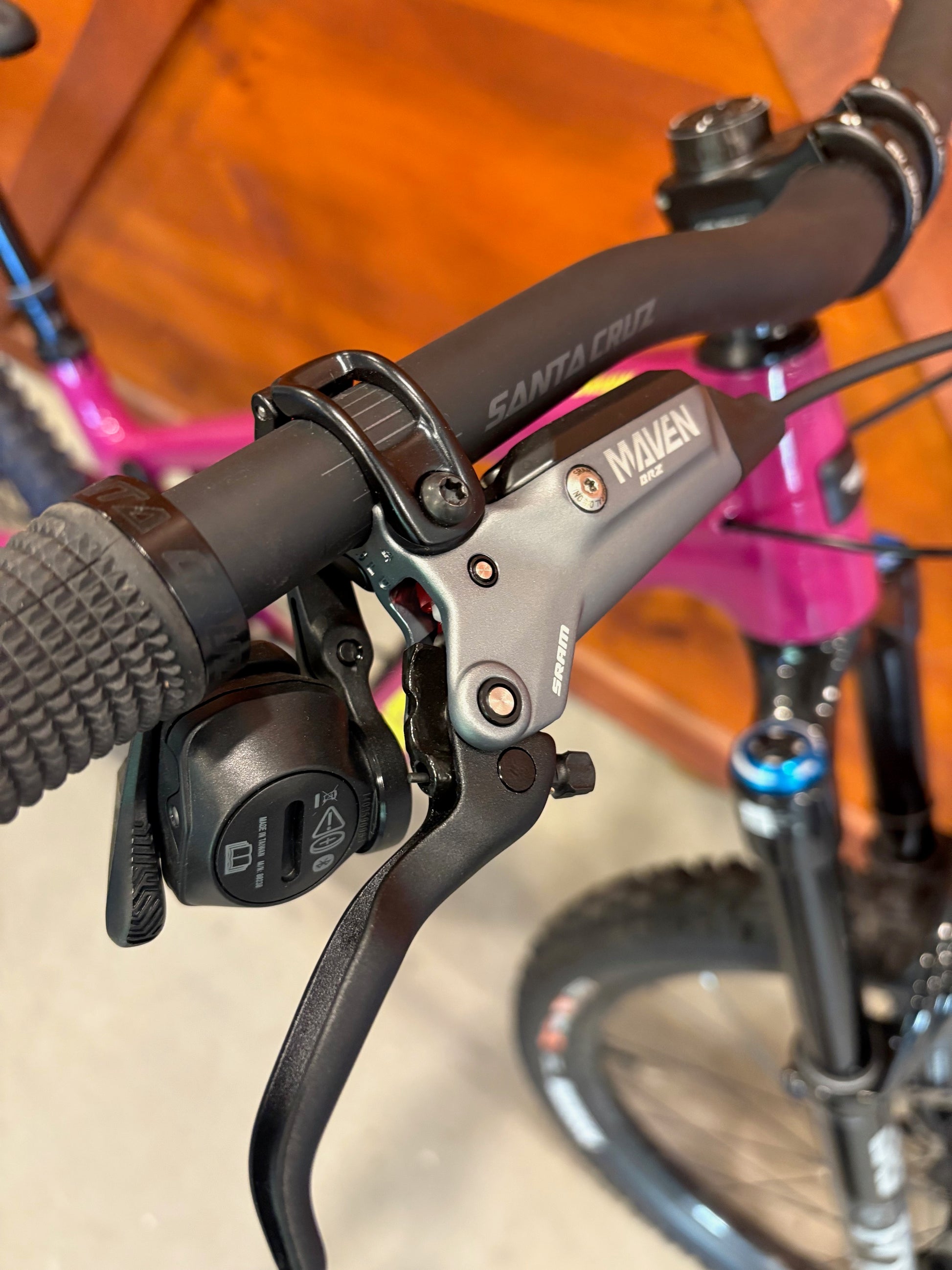

SRAM Maven Bronze Stealth
Front Rotor
SRAM HS2 200mm
Rear Rotor
SRAM HS2 180mm

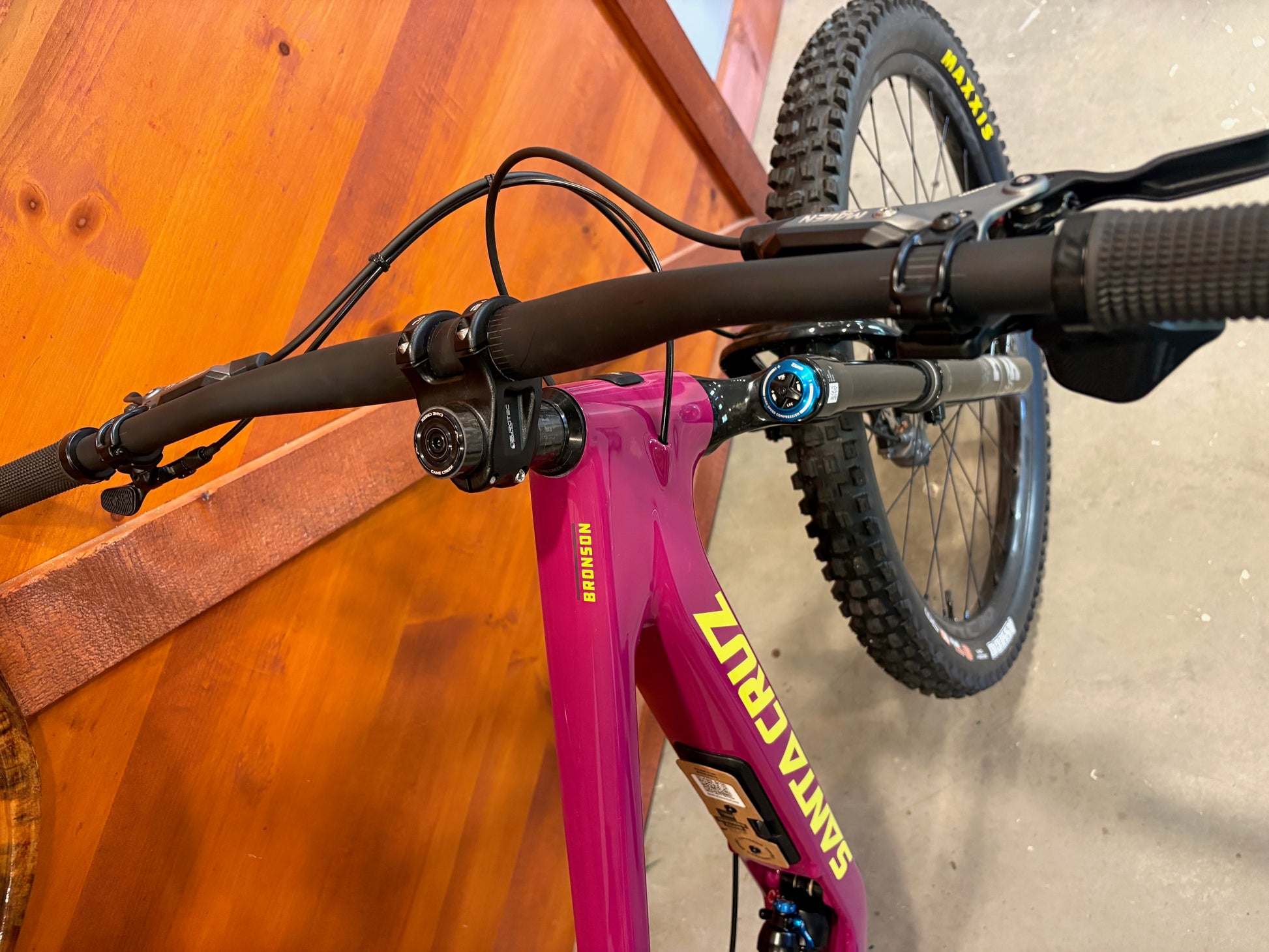

Cockpit
Grips / Bar Tape
Santa Cruz Bicycles House Grips
Handlebars
Santa Cruz 35 Carbon Bar, 800mm
Headset
Cane Creek 40 IS Integrated Headset
Saddle
SDG Bel-Air V3, Lux-Alloy Atmos
Seatpost
OneUp Dropper Post, 31.6
Stem
OneUp Stem, 42mm -or- Burgtec Enduro Stem, 42mm
Wheels
Front Rim
Reserve 30|SL AL 6069 -or- Raceface ARC 30
Front Hub
DT Swiss 370, 15x110, 6-Bolt, 28h
Front Tire
Maxxis Assegai 29"x2.5", 3C, MaxxGrip, EXO+
Rear Rim
Reserve 30|SL AL 6069 -or- Raceface ARC 30
Rear Hub
DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 28h
Rear Tire
Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+
Valves
Reserve Fillmore Valves
Specs
Bottom Bracket Shell
73mm Threaded
Rear Brake Mount
180 PM
Shock Length
230mm
Fork Offset
44mm
Front Derailleur Mount
No compatibility
Headset
Integrated (IS41/52)
Max Chainring Size
36t
Max Rotor Size
223mm
Max Tire Clearance
2.5"
Seat Clamp Diameter
36.4mm
Seat Post Diameter
31.6mm
Shock Bushing Size Front
40x10 (standard bushing)
Shock Bushing Size Rear
30x8 (roller bearing)
Shock Stroke
57.5mm
Suspension System
VPP
Water Bottle Mounts
1
